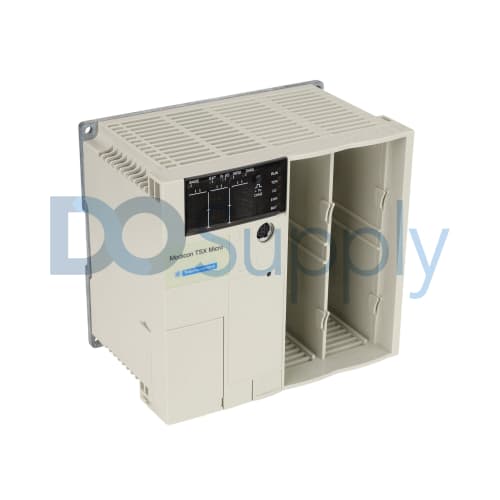

TSX3710101

The TSX3710101 micro PLC series from Schneider Electric is designed to handle a variety of automation tasks efficiently. It is rated for a wide input voltage of 100-240 V AC. This model accommodates input currents from a low 2 mA to a maximum of 60 A, providing flexibility for different applications.

Operating temperature is rated between 32 and 140 °F (0 and 60 °C), making this PLC suitable for diverse environments. The unit functions effectively at a frequency of 50/60 Hz and includes two slots for modular expansion. With a maximum output capacity of 0.5 A, it ensures reliable command over devices in integrated systems.

The TSX3710101 also features eight analog input slots with a defined voltage range of 0 to 10 V, along with a single analog output slot that supports the same voltage range. Its communication needs are addressed with one serial link via Uni-Telway, rated at 19.2 kbit/s, and a Modbus RTU interface, also at 19.2 kbit/s.

Memory capabilities include 15 Kwords of flash memory alongside 20 Kwords of internal RAM, which can be expanded to 128 Kwords through a PCMCIA card. Execution times vary depending on the operation type, ranging from 0.13 µs for Boolean operations to 4.5 µs for arithmetic REAL floating operations. The application's structure supports one fast task, one master task, and sixteen event tasks, allowing for efficient management of processes.

This micro PLC operates effectively in conditions featuring humidity levels from 10% to 95%, provided there is no condensation. The physical dimensions of the unit measure 13.44 inches in length, 5.94 inches in width, and 5.98 inches in height, allowing for easy integration into existing systems.
