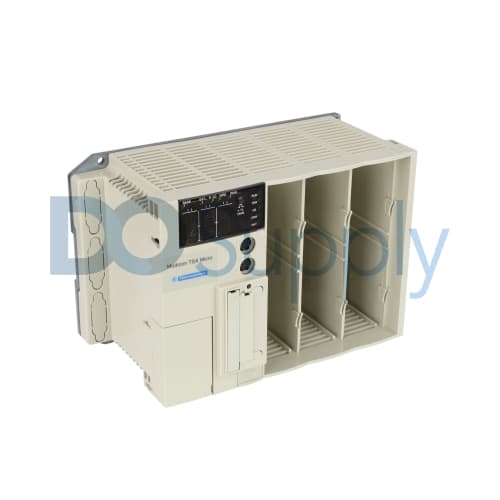

Schneider Electric TSX Micro PLCs TSX3721001

Product image is representative; revision or series may vary. Contact us to request a specific version.

TSX3721001

|
Need a Specific Revision?

The Schneider Electric TSX3721001 is a controller module from the TSX Micro PLCs series equipped with a real-time clock. It features substantial memory capacities, including internal RAM for data and program storage and flash memory. This module supports complex applications and various communication protocols, ensuring flexibility in system design.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for TSX3721001

ManufacturerSchneider Electric
Product LineTSX Micro PLCs
Part NumberTSX3721001
EAN3389110580518
Weight1.00 lbs (0.45 kg)
Realtime ClockYes
Memory DescriptionInternal RAM with 20 Kwords data, Internal RAM (with PCMCIA card) with 128 Kwords program and data, Internal RAM with 128 Kwords data storage, and Flash with 15 Kwords data
Max. Size of Object Areas256 %Mi, 1 %MWi for internal words, 128 %KWi for constant words
Execution Time for 1 K Instructions5.88 ms for 100% Boolean without a PCMCIA card, 0.27 ms for 65% Boolean and 35% numerical without a PCMCIA card, 4 ms for 100% Boolean with a PCMCIA card, 0.266 ms for 65% Boolean and 35% numerical with a PCMCIA card
Application Structure1 fast task, 1 master task, and 16 event tasks
System Overhead1.6 ms for master task
Protection TypeOverload protection, Short-circuit protection
Total Useful Secondary Power16 W
Electromagnetic CompatibilityElectrostatic discharge per IEC 1000-4-2 level 3, Electromagnetic field immunity test per IEC 1000-4-3 level 3, Resistance to fast transient per IEC 1000-4-4 level 3, Immunity to impulse waves per IEC 1000-4-5, Damped oscillatory wave per IEC 1000-4-12, Immunity to electromagnetic interference per IEC 61131-2
Primary Voltage100-240 V AC (90-264 V AC)
Input Current2 mA, < 60 A
Immunity to Microbreaks< 20 ms
Output Current0.5 A
Number of Slots3
Integrated Connection Type1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s, 1 Modbus RTU 19.2 kbit/s
Request a Repair

The TSX3721001 model from Schneider Electric's TSX Micro PLCs series operates as a controller module with a dedicated real-time clock. Its memory architecture is robust, consisting of internal RAM capable of 20 Kwords for data management, along with capacity expansions available when utilizing a PCMCIA card, allowing for 128 Kwords of program and data storage. There is also an additional 15 Kwords in flash memory for storing information.

Object areas are designed to accommodate up to 256 %Mi, with 1 %MWi allocated for internal data storage and 128 %KWi reserved for constant values. Execution times for processing instructions are efficient, offering 5.88 milliseconds for 100% Boolean operations without a PCMCIA card while supporting a reduced 0.266 milliseconds when using one, depending on the task's complexity.

The application structure consists of one fast task, one master task, and up to 16 event tasks, allowing versatile programming capabilities. The master task executes with a system overhead of 1.6 milliseconds, ensuring rapid response and reliability during operation. The device has an IP30 rating and complies with multiple electromagnetic compatibility standards to protect against interference and electrical noise.

Operating under a primary voltage range of 100 to 240 V AC, the controller draws an input current of only 2 mA while sustaining a maximum output current of 0.5 A. It is designed to withstand microbreaks of less than 20 milliseconds, improving its resilience. The unit features three integration slots, supporting a serial link with Uni-Telway at 19.2 kbit/s and Modbus RTU at the same rate, facilitating effective communication in automation systems while enhancing connectivity options.
