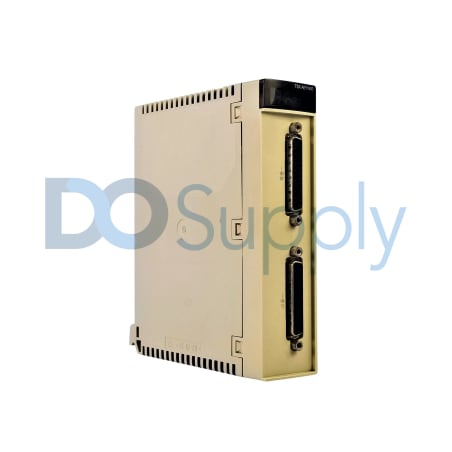

TSXAEY1600

The Schneider Electric TSXAEY1600 is designed as a robust standard module suited for various industrial applications. Its operating environment can range between 0 and 60°C, while it remains capable of withstanding storage temperatures down to -25°C and up to 70°C. The device efficiently operates within a relative humidity range of 10% to 95%, guaranteeing stable performance without condensation.

Weighing 0.34 kg, the module requires a current supply of 270 mA at a voltage of 5 V DC. Two SUB-D 25 connectors facilitate the necessary electrical connections. Input overvoltage protection enhances its functionality with limits of -15 to 15 volts at state 0 and -30 to 30 volts at state 1. This provides additional security against potential surges.

Isolation measures safeguard operations, as the TSXAEY1600 maintains 1000 Vrms isolation between channels and both the bus and the ground. The device ensures high accuracy for various voltage ranges, featuring a measurement error of merely 0.1% of full scale when operating at 25°C. The fast read cycle time is recorded at 3 milliseconds plus 3 ms for each additional channel in use, while its nominal read cycle time is 51 milliseconds. Among its processing capabilities, this module supports 16 high-level analog input channels utilizing 12-bit analog/digital conversion. It accommodates multiple input types, including current inputs (0-20 mA, or 4-20 mA) and voltage inputs (±10 V, 0-10 V, 0-5 V, and 1-5 V). Overall, the TSXAEY1600 effectively meets the demands of complex automation tasks while ensuring high performance and reliability.
