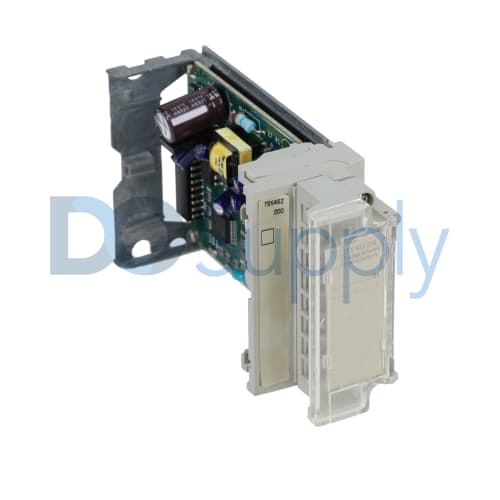

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXASZ200
The TSXASZ200 from Schneider Electric is an analog output module suited for precise control tasks. Designed to facilitate two channels, it supports output signal types of 0-20 mA, 4-20 mA, or ±10 V, adapting to various application demands.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXASZ200
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Analog Output Module |
| Product Line | TSX Micro PLCs |
| Part Number | TSXASZ200 |
| EAN | 3389110604528 |
| Weight | 1.00 lbs (0.45 kg) |
| Series | I/O Modules |
| Number of Channels | 2 |
| Output Signal Type | 0-20 mA, 4-20 mA, or ±10 V |
| Analog/Digital Conversion | 11-bit + sign for current, 11-bit for voltage |
| Output Load | ≤ 0.6 Ω for current, ≥ 1 kΩ for voltage |
| Output Resolution | 0.01 mA for current, 0.01 V for voltage |
| Temperature Drift | 0.107%/10°C for current, 0.083%/10°C for voltage |
| Isolation Voltage | 1500 V AC |
| Current Consumption | 150 mA |
| Protection Type | Open-circuit protection for current outputs |
| Output Load Capacity | 0-20 mA or 4-20 mA with ≤ 0.6 Ω, ±10 V with ≥ 1 kΩ |
| Shielding Connection | Dedicated shielding terminals for each channel |
| Operating Temperature Range | Typically 0°C to 60°C (common for TSX Micro modules) |
| Compatible Platforms | Modicon TSX Micro automation platform |
The Schneider Electric TSXASZ200 is an analog output module utilized in automation applications. This device provides two channels, each capable of delivering an output signal of 0-20 mA, 4-20 mA, or ±10 V. The module performs analog to digital conversion with an 11-bit resolution, incorporating a sign for current measurements and offering a similar resolution for voltage. Notably, the output load capacity allows for current outputs with a resistance of ≤ 0.6 Ω and voltage outputs with a minimum of 1 kΩ.
Precision is key, as indicated by an output resolution of 0.01 mA for current and 0.01 V for voltage. Additionally, temperature drift specifications list a difference of 0.107% per 10°C for current, while voltage drift is lower at 0.083% per 10°C. With an isolation voltage of 1500 V AC, the TSXASZ200 maintains high safety standards against electrical transients.
This analog output module has a current consumption of 150 mA, ensuring efficient power usage. It features open-circuit protection specifically for its current outputs, enhancing safety during operation. Dedicated shielding terminals are available for each of the channels, minimizing interference and maintaining signal integrity.
Weighing in at 0.2 kg, the unit's compact design makes it ideal for integration with Modicon TSX Micro automation platforms. The operating temperature range typically spans from 0°C to 60°C, aligning with standard performance requirements for TSX Micro modules.
