TSXDEZ12D2

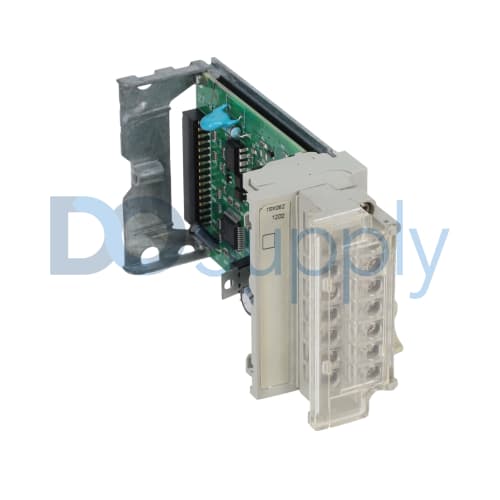

The TSXDEZ12D2 from Schneider Electric is a discrete input module that supports connectivity for 12 inputs, specifically designed for use with 2-wire and 3-wire proximity sensors, either PNP or NPN. It operates at an input voltage of 24 V DC, encompassing a voltage range from 19 to 30 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXDEZ12D2
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Discrete Input Module |
| Product Line | TSX Micro PLCs |
| Part Number | TSXDEZ12D2 |
| EAN | 3389110540420 |
| Weight | 0.50 lbs (0.23 kg) |
| Series | I/O Modules |
| Number of Inputs | 12 Inputs |
| Input Compatibility | 2/3-wire Proximity Sensors (PNP/NPN) |
| Input Voltage | 24 V DC (Positive/Negative) |
| Input State Limits | >= 11 V (State 1), < 5 V (State 0) |
| Voltage Range | 19-30 V |
| Current Consumption | 123 mA (Positive), 107 mA (Negative) |
| Input Current | 9 mA |
| Response Time | 0.1-7.5 ms |
| Input Impedance | 2.4 Ohm |
| Maximum Operating Altitude | 1000 meters above sea level without derating |
| Maximum Operating Humidity | 80% RH (non-condensing) |
| Maximum Storage Humidity | 80% RH (non-condensing) |
The Schneider Electric TSXDEZ12D2 is engineered as a discrete input module with the capability to handle 12 separate inputs. This versatile device caters to both 2-wire and 3-wire proximity sensors, offering compatibility with both PNP and NPN configurations. Designed to operate at a nominal input voltage of 24 V DC, the module functions effectively within a broader operational voltage range of 19 to 30 V.
Input state thresholds are clearly defined, with state 1 requiring a minimum of 11 V and state 0 defined at voltages lower than 5 V. Current consumption is specified at 123 mA when the positive input is engaged and 107 mA for negative input scenarios, while the module itself draws an input current of 9 mA.
In terms of performance characteristics, the TSXDEZ12D2 boasts a rapid response time, between 0.1 and 7.5 milliseconds, which enhances its responsiveness in automation tasks. The input impedance has been documented at 2.4 Ohms, contributing to the reliability of signal detection.
The module is built to endure a maximum altitude of 1000 meters above sea level without derating, making it suitable for installation in various environments. Furthermore, it can operate in conditions with up to 80% relative humidity, ensuring functionality without condensation issues during operation or while in storage.
