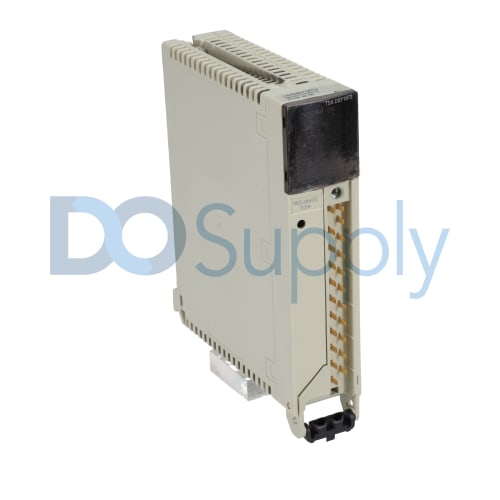

Product image is representative; revision or series may vary. Contact us to request a specific version.
TSXDSY16T2
The TSXDSY16T2 is a discrete output module from Schneider Electric's TSX Micro PLCs series. This module features 16 solid-state outputs and operates at a discrete output voltage of 24 V DC, which is suitable for various applications that require reliable performance.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXDSY16T2
| Manufacturer | Schneider Electric |
|---|---|
| Product Type | Discrete output module |
| Product Line | TSX Micro PLCs |
| Part Number | TSXDSY16T2 |
| EAN | 3389110717600 |
| Weight | 1.00 lbs (0.45 kg) |
| Short-Circuit Protection | Electronic tripping on reactivation |
| Output Overload Protection | Electronic tripping on reactivation |
| Reverse Polarity Protection | Reverse mounted diode |
| Output Overvoltage Protection | By transil diode |
| Switching Frequency | 0.5/LI² Hz |
| Response Time | 1.2 ms |
| Residual Voltage | < 1.2 V |
| Leakage Current | < 0.5 mA at state 0 |
| Current per Module | ≤ 7 A |
| Current per Channel | ≤ 0.625 A |
| Discrete Output Current | 0.5 A |
| Discrete Output Voltage | 24 V DC positive conforming to EN/IEC 61131-2, 19...30 V |
| Discrete Output Type | Solid state protected |
| Discrete Output Number | 16 |
The TSXDSY16T2, part of Schneider Electric's TSX Micro PLCs line, is a comprehensive discrete output module tailored for diverse automation systems. It can accommodate 16 discrete outputs and operates effectively at a rated output voltage of 24 V DC, adhering to EN/IEC 61131-2 standards. The module is capable of sourcing up to 0.5 A per output channel, contributing to enhanced system performance.
Specialized protection features are integrated into the design. Electronic tripping safeguards against overload conditions and short circuits during reactivation, ensuring operational safety. A reverse-mounted diode also provides reverse polarity protection, safeguarding the device from miswired connections. Additionally, transil diodes enable output overvoltage protection, further enhancing operational reliability.
During regular operations, this module maintains a minimal leakage current of less than 0.5 mA when in the off state. The residual voltage stays below 1.2 V, ensuring clean switching performance. The module achieves a swift response time of just 1.2 ms, enabling effective real-time control and feedback processes. With a specified switching frequency of 0.5/LI² Hz, the TSXDSY16T2 caters to varying signal requirements, making it adaptable for numerous applications. The maximum current rating for the module is set at 7 A, allowing for robust connectivity options in demanding environments.
