TSXDSY64T2K

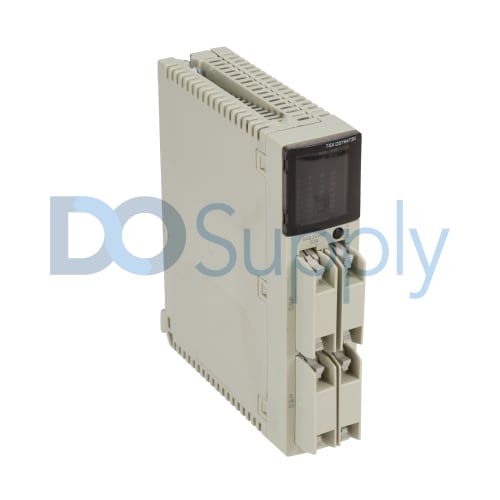

The TSXDSY64T2K is a solid-state protected module with 64 discrete outputs, specifically designed for 24 V DC positive systems within the Schneider Electric TSX Micro PLC range. It offers comprehensive protection features, including short-circuit, overload, and reverse polarity safeguards.
-
We sell industrial automation parts backed by our 2-year DO Supply Warranty.
-
Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
-
Repair and exchange services for all existing automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXDSY64T2K
| Manufacturer | Schneider Electric |
|---|---|
| Series | TSX Micro PLCs |
| Part Number | TSXDSY64T2K |
| Discrete Output Number | 64 |
| Discrete Output Type | Solid state protected |
| Discrete Output Voltage | 24 V DC positive (EN/IEC 61131-2 19...30 V) |
| Current per Channel | ≤ 0.1 A |
| Current per Module | ≤ 5 A |
| Leakage Current | < 0.1 mA at 30 V |
| Tungsten Load | ≤ 1.2 W |
| Residual Voltage | < 1.5 V |
| Response Time | 1.2 ms |
| Paralleling of Outputs | Yes, up to 3 maximum |
| Output Overvoltage Protection | By transil diode |
| Reverse Polarity Protection | Reverse mounted diode |
| Output Overload Protection | Automatic trip |
| Short-Circuit Protection | Automatic trip |
| Load Impedance | > 220 W at state 1 |
The Schneider Electric TSXDSY64T2K module is a flexible solution for applications requiring multiple discrete outputs. Specifically designed for 24 V DC systems, it comprises 64 solid-state outputs, enabling precise control in various automation scenarios.
With a maximum current rating of 0.1 A per output channel and an aggregate capacity of up to 5 A across the module, it is suitable for diverse operational requirements. Each output keeps leakage current below 0.1 mA at 30 V, ensuring efficient power usage. Maneuvering through switching demands, the module activates with a swift response time of 1.2 ms, maintaining operational integrity.
Protection mechanisms enhance the TSXDSY64T2K's reliability. It features transit diodes for output overvoltage protection and includes reverse polarity safeguards through reverse-mounted diodes. Furthermore, short-circuit and overload situations trigger automatic trip mechanisms, ensuring safety and preventing damage to connected devices.
In addition, the module supports paralleled outputs, allowing up to three outputs to work in unison, thus enhancing versatility in system design. It accommodates a maximum load of 1.2 W for applications requiring tungsten loads and ensures appropriate load impedance above 220 W. The residual voltage is kept under 1.5 V, ensuring minimal residual energy is present after switching.
