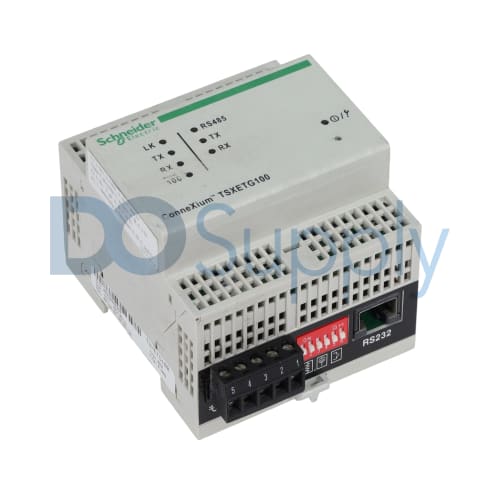

TSXETG100
The TSXETG100 module is a part of Schneider Electric's TSX Micro PLCs series. It operates with a rated supply voltage of 24 V DC and supports several Ethernet protocols, including Modbus TCP/IP and HTTP. The unit also facilitates serial communication through Modbus RTU and ASCII protocols, enabling flexible connectivity options for industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXETG100
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | TSX Micro PLCs |
| Part Number | TSXETG100 |
| UPC | 785901524939 |
| Weight | 3.00 lbs (1.36 kg) |
| Rated Supply Voltage | 24 V DC |
| Ethernet Protocols Supported | Modbus TCP/IP, HTTP, FTP, SNMP, ARP |
| Serial Communication Protocols | Modbus RTU and ASCII |
| Ethernet Connection Type | RJ45 10/100 Mbps |
| Serial Link Connection Types | RS485 (57.6 kbps), RS232 (38.4 kbps) |
| Max Number of Connected Devices | Less than 32 on Modbus serial link |
| Mounting Support | Symmetrical DIN rail |
| Local Signaling | 3 LEDs for serial link communication (RS485, RX, TX) and 4 LEDs for Ethernet communication (LK, RX, TX, 100) |
| Air Temperature for Operation | 32-140 °F (0-60 °C) |
| Relative Humidity | 5-95 % at 104 °F (40 °C) without condensation |
| IP Degree of Protection | IP30 |
| Standards Compliance | EN 61000-4-2/3/4/5/6/8, UL 508, CSA C22.2 No 14-M91, EN 55022, FCC class A, EN 61000-6-2 |
| Product Certifications | cUL, UL |
| Web Services | Diagnostic on Ethernet and Modbus links via predefined web pages |
The Schneider Electric TSXETG100 is an efficient communication module within the TSX Micro PLCs lineup. It utilizes a 24-V DC-rated supply voltage, which is integral to its operation. Users can leverage various Ethernet protocols, including Modbus TCP/IP, HTTP, FTP, SNMP, and ARP, allowing for robust networking capabilities.
In addition to Ethernet functionalities, the module supports serial communication with protocols, including Modbus RTU and ASCII. It features an RJ45 Ethernet connection type capable of 10/100 Mbps speeds. Serially, connections can be established utilizing RS485 at 57.6 kbps or RS232 at 38.4 kbps.
The unit is designed to support less than 32 devices connected through its Modbus serial link, offering significant versatility for different configurations. Mounting with symmetrical DIN rail support is straightforward, ensuring a secure and efficient installation. Local signaling on the TSXETG100 includes three LEDs for serial communication and four LEDs dedicated to Ethernet communication, facilitating real-time diagnostics and monitoring.
The TSXETG100's physical dimensions are 72 x 81 x 76 mm, making it compact enough for various deployment scenarios. The module operates effectively within a temperature range of 32 to 140 °F (0 to 60 °C) and maintains performance in relative humidity levels from 5% to 95% at the upper-temperature limit, provided that condensation is absent. It has an IP30 degree of protection, shielding it from dust and accidental contact with solid objects.
The TSXETG100 complies with several industry standards, including EN 61000-4, UL 508, and FCC class A, ensuring reliability and safety within industrial applications. Additionally, it holds cUL and UL product certifications, validating its adherence to critical safety standards. Web services allow diagnostic capabilities over Ethernet and Modbus links, simplified via predefined web pages, enhancing usability and troubleshooting.
