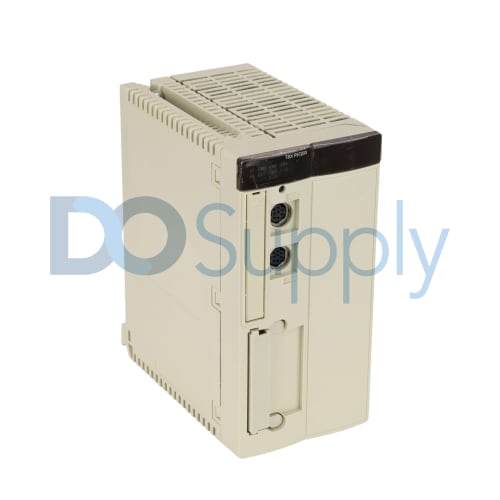

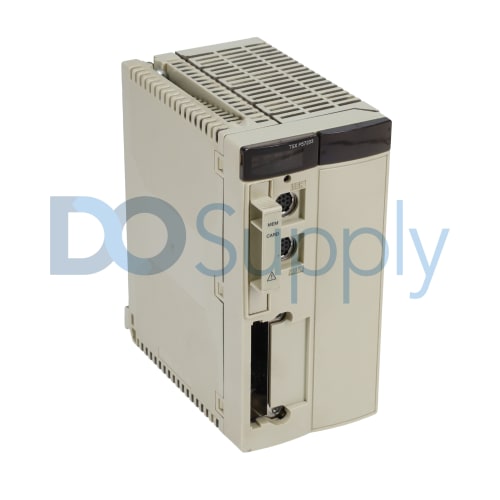

TSXP57203M
The TSXP57203M from Schneider Electric is part of the TSX Micro PLC series. It features advanced processing capabilities, including a fast task overhead of 0.3 milliseconds and a master task overhead of 1 millisecond. This unit is designed for efficient program execution with a memory capacity of 224 KB when using a PCMCIA card.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TSXP57203M
| Manufacturer | Schneider Electric |
|---|---|
| Product Line | TSX Micro PLCs |
| Part Number | TSXP57203M |
| EAN | 3595862023849 |
| Weight | 1.00 lbs (0.45 kg) |
| System Overhead | 0.3 ms fast task, 1 ms master task |
| Memory Description | Internal RAM: 224 KB program and 96 KB data with PCMCIA card; 96 KB program and data without PCMCIA card |
| PCMCIA Card | 256 KB additional data storage |
| Execution Time per Instruction | 0.19 µs Boolean without PCMCIA card, 0.25 µs Boolean with PCMCIA card |
| Number of Instructions per ms | 2.1 Kinst/ms (with PCMCIA card: 65% Boolean + 35% fixed arithmetic), 3.71 Kinst/ms (without PCMCIA card: 65% Boolean + 35% fixed arithmetic) |
| Current Consumption | 1650 mA, 5 V DC |
| Module Format | Standard |
| Communication Module Processor Capacity | 2 modules |
| Integrated Connection Type | Ethernet TCP/IP RJ45, Serial link 2 female mini DIN RS485 19.2 kbit/s |
| Analogue I/O Processor Capacity | 24 I/O |
| Discrete I/O Processor Capacity | 512 I/O |
| Number of Racks | 2 (12 slots), 4 (4/6/8 slots) |
| Internal RAM | 96 KB data |
| Application Structure | 1 master task, 1 fast task, 32 event tasks |
The Schneider Electric TSXP57203M is a compact programmable logic controller designed for high-speed processing and control. It features a system overhead with a fast task execution time of 0.3 milliseconds and a master task time of 1 millisecond, facilitating quick responses in automation applications. The internal RAM allows for 224 KB of program storage and 96 KB of data while utilizing a PCMCIA card. Users can also utilize an additional 256 KB of storage with the card installed.
For instruction efficiency, this PLC achieves execution times per instruction of 0.19 microseconds for Boolean operations when not using a PCMCIA card, increasing to 0.25 microseconds when engaged. The processing capability peaks at 3.71 Kinst/ms without the PCMCIA and 2.1 Kinst/ms with it, ensuring robust performance for complex tasks.
With a standard module format, the TSXP57203M weighs approximately 0.84 lbs. (0.38 kg) and supports up to two communication modules. It is equipped with integrated connection types such as Ethernet TCP/IP via an RJ45 interface and a serial link utilizing female mini-DIN RS485 at 19.2 kbit/s for flexible networking options. Additionally, the PLC facilitates 512 discrete I/O and 24 analog I/O points, enhancing its applicability in diverse control systems.
Its structure includes 1 master task, a fast task, and up to 32 event tasks. The TSXP57203M thus stands as a competent solution for advanced automation requirements, fulfilling the need for efficiency and adaptability in various operational frameworks.
