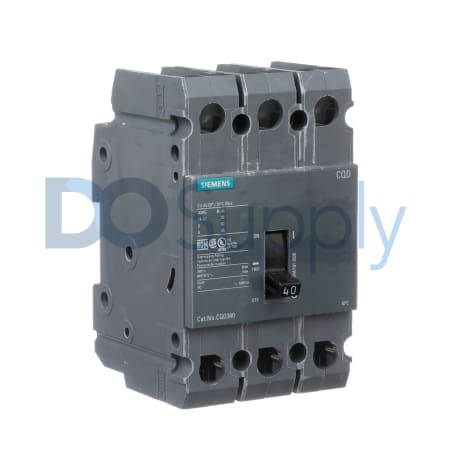

Product image is representative; revision or series may vary. Contact us to request a specific version.
CQD340
Siemens offers the CQD340, a reliable circuit breaker specifically designed for multi-phase electrical systems. With a rated amperage of 40 Amps and a voltage rating of 480/277 Volts AC, this unit is suited for demanding applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CQD340
| Manufacturer | Siemens |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | CQD Series |
| Part Number | CQD340 |
| UPC | 783643277786 |
| Pole Configuration | 3 Poles |
| Panel Mounting Method | DIN Rail |
| Dielectric Withstand Level | 600 Volts |
| Conductor Termination Method | Screw Clamp |
| Rated Amperage | 40 Amps |
| Voltage Rating | 480/277 Volts AC |
| System Phases | 3 Phase |
| Maximum Interrupting Capacity | 14 kA at 480V AC |
| Trip Mechanism Type | Thermal-Magnetic |
| Actuator Mechanism | Magnetic Actuation |
| Maximum Ambient Temperature | 40 Degrees Celsius |
The Siemens CQD340 circuit breaker is designed to provide robust protection in complex electrical installations. This unit includes three poles, making it ideal for 3-phase systems, and is rated for 40 Amps, ensuring reliable operation under various load conditions. The voltage rating of 480/277 Volts AC positions the CQD340 effectively for substantial electrical applications.
This breaker employs a thermal-magnetic trip mechanism, offering comprehensive protection against overloads and short circuits. It possesses a maximum interrupting capacity of 14 kiloamperes at 480V AC, granting it the ability to manage significant electrical faults safely. With a dielectric withstand level of 600 Volts, this breaker provides additional assurance of reliability against insulation failures.
It features a DIN rail mounting method, simplifying installation in panel boards. The screw clamp method allows for secure conductor terminations, facilitating easy wiring. Operating within a maximum ambient temperature of 40 degrees Celsius, this circuit breaker is engineered for dependable performance in a variety of environments.
