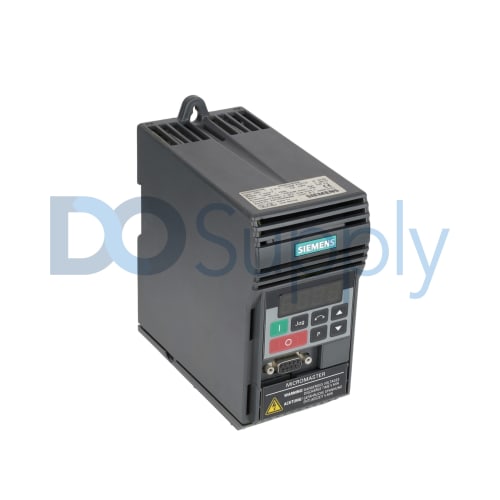

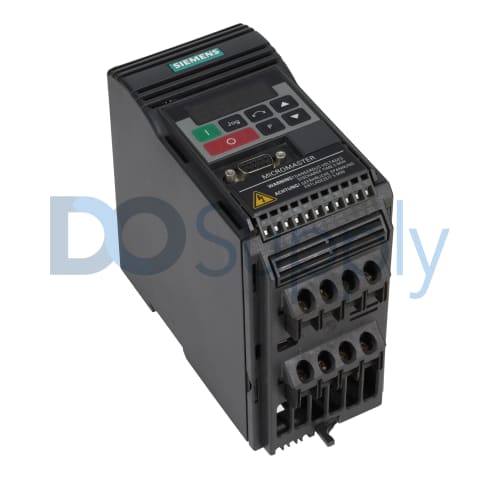

Siemens MICROMASTER 6SE9213-6CA40

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SE9213-6CA40

|
Need a Specific Revision?

The Siemens 6SE9213-6CA40 is a 230V three-phase inverter designed for efficient operation in various applications. With a motor output power rating of 0.75 kW (1 hp) and continuous output power of 1.5 kVA, this inverter can handle demanding tasks while maintaining performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SE9213-6CA40

ManufacturerSiemens
Product LineMICROMASTER
Part Number6SE9213-6CA40
UPC783087590779
Weight5.00 lbs (2.27 kg)
Inverter Type230V Three-Phase MICROMASTER Inverter
Input Voltage Range1 - 3 AC 208V - 240V ±10%
Motor Output Power0.75 kW / 1 hp
Nominal Output Current3.5 A
Maximum Continuous Output Current3.9 A
Continuous Output Power1.5 kVA
Nominal Input Current (1 AC)8.2 A
Nominal Input Current (3 AC)4.7 A
Recommended Mains Fuse16 A
Input Cable Minimum Cross-Section1.5 mm²
Output Cable Minimum Cross-Section1.5 mm²
Integrated Filter TypeClass A
Optional FeaturesExternal Class B filters available
Request a Repair

The Siemens 6SE9213-6CA40 belongs to the MICROMASTER series, offering a robust solution as a 230V three-phase inverter. This device is adept at converting voltages between 208V and 240V ±10% effectively. Rated for a motor output power of 0.75 kW or 1 hp, it ensures significant drive performance for various motor applications.

In typical operations, the nominal output current stands at 3.5 A, and it can accommodate a maximum continuous output current of 3.9 A without compromise. The continuous output power of 1.5 kVA reinforces its effectiveness in demanding environments. When evaluating input requirements, the nominal input current is rated at 8.2 A for single-phase (1 AC) operation and 4.7 A for three-phase (3 AC) setups, making it versatile for different configurations.

Installation allows for a recommended mains fuse of 16 A, ensuring safety during operations. Both the input and output cable minimum cross-section should measure at least 1.5 mm² to support optimal performance and reliability.

The inverter measures 149 mm in width, 184 mm in height, and 172 mm in depth, simplicity in installation being one of its key design elements. Weighing in at 2.4 kg or 5.3 lbs., this unit offers a compact solution without sacrificing power.

Additionally, it incorporates a Class A integrated filter, which adequately addresses interference, with the option to include external Class B filters for enhanced noise mitigation. Altogether, the 6SE9213-6CA40 delivers high-quality performance and flexible integration into various industrial tasks.
