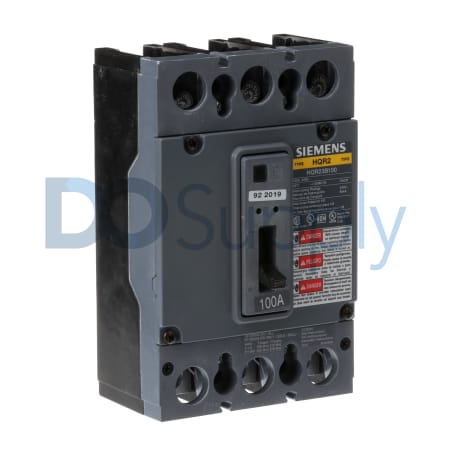

Product image is representative; revision or series may vary. Contact us to request a specific version.
HQR23B100
The HQR23B100 from Siemens is a low voltage molded case circuit breaker designed for efficiency. This device features a current rating of 100A and operates at a voltage of 240 V, offering reliable protection for electrical circuits.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HQR23B100
| Manufacturer | Siemens |
|---|---|
| Product Type | Low Voltage Molded Case Circuit Breaker |
| Product Line | QR Circuit Breakers |
| Part Number | HQR23B100 |
| UPC | 804766136900 |
| Current Rating | 100A |
| Number of Poles | 3 Poles |
| Voltage Rating | 240 V |
| Trip Unit Type | Thermal-Magnetic Trip |
| Interrupting Rating | 65KA |
| Frequency Rating | 50/60 Hz |
| Lugs | No lugs installed |
| Mounting Type | Bolt-On panelboard |
| Frame | QR FRAME |
| NEMA Enclosure Rating | NEMA 1/3R |
| Wire Range | 3 AWG to 300 kcmil Cu |
| Operating Ambient Temperature | 40 °C |
| Terminal Connection Type | Field-installed load lugs |
Siemens' HQR23B100 is a low voltage molded case circuit breaker crafted for dependable circuit protection. It is rated for a current of 100A and engineered for use within voltage applications of 240 V. This model features a triple-pole configuration to accommodate diverse electrical systems.
Equipped with a thermal-magnetic trip unit, the HQR23B100 effectively combines both thermal and magnetic protection, safeguarding against overcurrent conditions. It supports an impressive interrupting capability of 65KA, providing assurance during fault conditions. The product operates within a frequency range of 50 to 60 Hz, ensuring compatibility with most standard systems.
Installation is simplified with a bolt-on mounting method tailored for panelboards. The NEMA enclosure rating of 1/3R indicates suitability for both indoor and outdoor settings, protecting components from elements like dust and moisture. The wire range of this breaker spans from 3 AWG to 300 kcmil Cu, granting flexibility for various installations and applications. Additionally, the HQR23B100 includes field-installed load lugs, allowing for easy connectivity during setup. Operating temperatures should not exceed 40 °C, ensuring performance under recommended environmental conditions.
