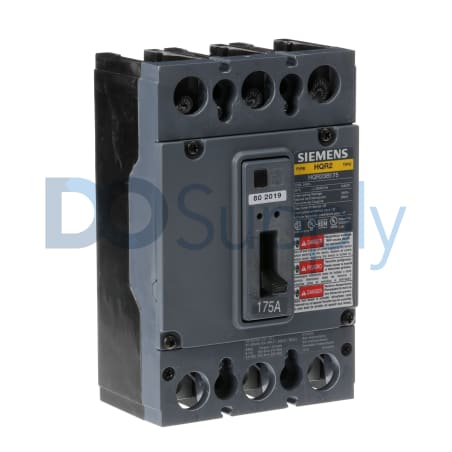

Product image is representative; revision or series may vary. Contact us to request a specific version.
HQR23B175
The HQR23B175 circuit breaker from Siemens is a molded case type rated for 175 Amperes. It offers robust protection with an interrupting rating of 65 kA at a voltage of 240 V, suitable for three-phase systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HQR23B175
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | QR Circuit Breakers |
| Part Number | HQR23B175 |
| UPC | 804766136931 |
| Rated Amperage | 175 A |
| Interrupting Rating | 65 kA at 240 V |
| Voltage Rating | 240 V |
| Connection Type | Bolt-On |
| Number of Poles | 3 Poles |
| Terminal Type | Load Side Lug |
| Phase Type | Three-Phase |
| Trip Type | Thermal Magnetic |
| Trip Functions | Long-Time, Instantaneous |
| Protection Type | Overcurrent |
| Switching Type | Manual Toggle |
The Siemens HQR23B175 is engineered as a molded case circuit breaker, specifically designed to accommodate a current rating of 175 Amperes. It operates at a voltage level of 240 V and is suitable for three-phase applications. The circuit breaker includes three poles, making it effective in handling significant electrical loads.
Featuring a dependable interrupting rating of 65 kA at 240 V, the HQR23B175 provides essential overcurrent protection. Its thermal magnetic trip mechanism is designed to respond to long-time overload conditions as well as instantaneous short circuits, ensuring the safety of the circuit in various situations.
For installation, connection is made through a bolt-on type, which promotes secure mounting and reliable electrical connections. The load side lug terminals facilitate ease of connection to the existing electrical infrastructure. The circuit breaker also features a manual toggle switch for easy operation, allowing users to quickly turn it on or off as required.
