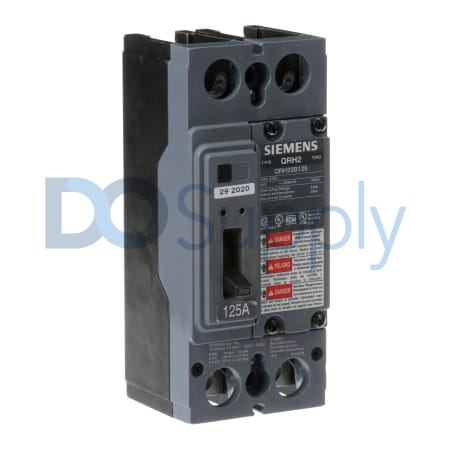

Product image is representative; revision or series may vary. Contact us to request a specific version.
QRH22B125
The QRH22B125 molded case circuit breaker from Siemens is designed for robust electrical protection. It operates at a rated current of 125 amperes and is suitable for 240-volt applications in single-phase configurations.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for QRH22B125
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | QR Circuit Breakers |
| Part Number | QRH22B125 |
| UPC | 804766136214 |
| Number of Poles | 2 Poles |
| Rated Current | 125 A |
| Rated Voltage | 240 V |
| Phase Type | 1-Phase |
| Connection Type | Bolt-On Connections |
| Protection Type | Thermal Magnetic Protection |
| AIC Rating | 25 kA at 240 V |
| Functions | LI - Long-Time and Instantaneous |
| Frame Type | QR Frame |
| Installation Altitude | 1000 MSL |
The Siemens QRH22B125 is a molded case circuit breaker tailored for effective circuit protection. Rated at 125 A, this device is designed for use in 240 V electrical systems, supporting single-phase operations. It features two poles, allowing for streamlined circuit management.
Connection is achieved through a bolt-on method, ensuring secure integration with electrical systems. This unit employs thermal magnetic protection, which safeguards against both long-time overloads and instantaneous overcurrents. With an AIC (Alternating Current Interrupting Capacity) rating of 25 kA at 240 V, it can effectively handle fault conditions, minimizing risks to other components in the system.
Constructed within a QR frame, the QRH22B125 maintains durability needed in various environments. It is rated for installations at altitudes up to 1000 meters above sea level, adapting well to different geographic conditions. Overall, this circuit breaker combines functionality with reliable protection for electrical networks, making it a suitable choice for both industrial and commercial applications.
