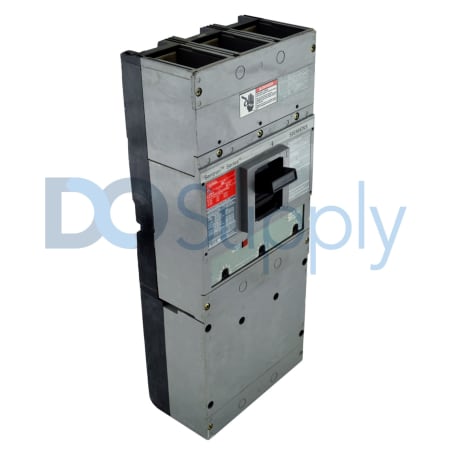

Product image is representative; revision or series may vary. Contact us to request a specific version.
CJD63B300
The CJD63B300, part of the Siemens SENTRON series, is a molded case circuit breaker designed for robust electrical systems. It features a rated current capacity of 300 A and operates at a maximum voltage of 600 V AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CJD63B300
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | CJD63B300 |
| UPC | 783643213593 |
| Rated Voltage | 600 V AC |
| Number of Poles | 3 Poles |
| Rated Current | 300 A |
| Protection Type | Thermal Magnetic |
| Phase Type | 3 Phases |
| AIC Rating | 150 kA at 480 V |
| Connection Type | Bolt-on Connection |
| Functions | LI - Long-Time and Instantaneous |
| Operating Humidity | 80% (Non-Condensing) |
| Installation Altitude | 1000 MSL |
The Siemens CJD63B300 is a molded case circuit breaker from the SENTRON series, tailored for demanding electrical applications. Operating on three phases, it carries a rated current of 300 Amps while functioning at a voltage of up to 600 Volts AC. This unit's construction allows it to manage critical conditions effectively. Its thermal magnetic protection provides reliable performance during overloads and short circuits.
Rated with an AIC capability of 150 kA when used at 480 V, the CJD63B300 offers assurance against severe fault currents. It has three poles, ensuring comprehensive circuit protection and functionality in complex electrical systems. The connection type is bolt-on, facilitating secure installation.
In addition, the product can operate in environments with an 80% non-condensing humidity level, making it resilient under various atmospheric conditions. It supports installation at altitudes of up to 1000 meters above sea level, making it versatile for use in diverse geographic locations. Overall, the Siemens CJD63B300 circuit breaker is designed to provide durability and reliability to ensure safe operation.
