ED23B080

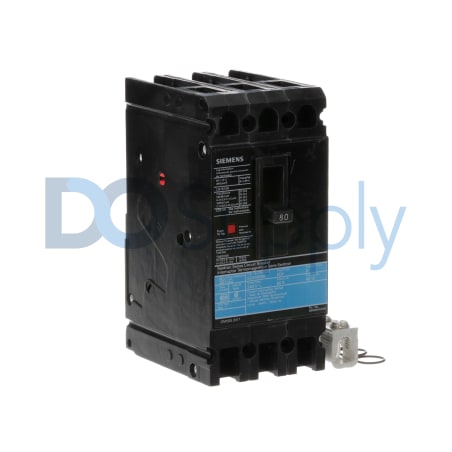

The ED23B080 by Siemens is a three-phase molded case circuit breaker. Designed to provide an 80 A amperage capacity, it operates efficiently at a voltage rating of 240 VAC. This breaker utilizes thermal magnetic protection and features both long-time and instantaneous trip functions.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED23B080
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED23B080 |
| UPC | 783643209060 |
| Amperage Rating | 80 A |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-time, Instantaneous |
| Number of Poles | 3 poles |
| Voltage Rating | 240 VAC |
| Phase | Three-phase |
| Interrupt Rating | 10 kA at 240 V |
| Load Side Termination | Lug |
| Mounting Type | Bolt-on |
| Frequency | 60 Hz |
| Line Side Termination | Lug |
The Siemens ED23B080 is a molded case circuit breaker crafted for demanding electrical environments. It operates within the voltage specification of 240 VAC and supports a maximum amperage of 80 A. The circuit breaker employs thermal magnetic protection, which is essential for ensuring safety and reliability in electrical systems. Key trip functions include both long-time and instantaneous settings that enhance its response to current variations.
This model consists of three poles, making it suitable for three-phase applications. With an interrupt rating of 10 kA at 240 V, the ED23B080 is designed to swiftly disconnect under fault conditions, safeguarding connected circuits.
For installation, this unit features lugs for line and load side terminations, which facilitate straightforward wiring. It is designed for bolt-on mounting, allowing secure integration into panel setups. Supporting a frequency of 60 Hz, the ED23B080 performs efficiently within its specified parameters, making it a reliable choice for industrial applications requiring robust circuit protection.
