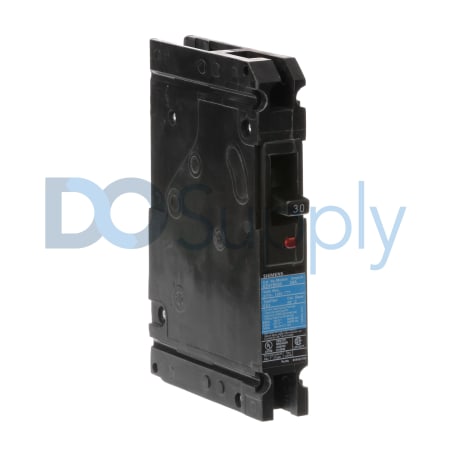

Siemens SENTRON ED41B030

Product image is representative; revision or series may vary. Contact us to request a specific version.

ED41B030

|
Need a Specific Revision?

The ED41B030 circuit breaker from Siemens is part of the SENTRON series. This device features a thermal-magnetic trip mechanism and is designed for reliable protection in electrical systems with a current rating of 30 Amps.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for ED41B030

ManufacturerSiemens
Product TypeCircuit breaker
Product LineSENTRON
Part NumberED41B030
UPC783643209114
Trip TypeThermal magnetic
FrameED frame
Breaking CapacityStandard
Current Rating30 Amps
Poles1 pole
Interrupting Rating22 kAIC (277V)
LugsLoad side only
Wire Size10 to 4 AWG
Voltage Rating277 VAC
CertificationsUL, IEC
Request a Repair

Siemens manufactures the ED41B030, a robust circuit breaker belonging to the SENTRON series. This unit utilizes a thermal magnetic trip type, ensuring dependable operation when addressing fault conditions. Rated at 30 Amps, it is suitable for single-pole applications where current control is critical.

The ED41B030 operates at a voltage of 277 VAC and has an interrupting capacity of 22 kAIC, providing sufficient protection against electrical overloads. The standard breaking capacity further enhances its operational reliability in various settings. Wire connections can be made using sizes ranging from 10 to 4 AWG, making it adaptable for different installation requirements. Additionally, the breaker is fitted with load side-only lugs, simplifying the wiring process.

Crafted with an ED frame, the unit ensures a compact profile for easy integration into existing setups. The ED41B030 is also UL and IEC certified, confirming compliance with stringent electrical standards for safety and performance, making it a trustworthy component in electrical distributions.
