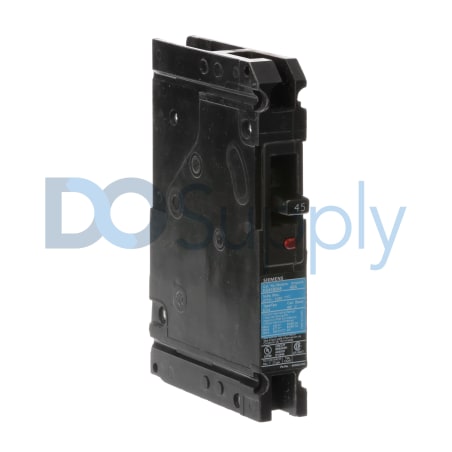

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED41B045
The Siemens ED41B045 is a molded case circuit breaker intended for single-phase applications. It is rated at 45 A and features thermal magnetic protection. This unit is designed to interrupt at a capacity of 22 kA.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED41B045
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED41B045 |
| UPC | 783643209145 |
| Protection Type | Thermal Magnetic |
| Amperage Rating | 45 A |
| Number of Poles | 1 Pole |
| Interrupt Rating | 22 kA |
| Phase | Single-phase |
| Mounting Type | Bolt-on |
| Voltage Rating (AC) | 120/277 VAC |
| Terminal Connection | Load-side Lug |
| Voltage Rating (DC) | 125 VDC |
| Frequency | 50/60 Hz |
| Actuator Type | Toggle |
Model ED41B045 from Siemens belongs to the SENTRON series, featuring a molded case circuit breaker specifically crafted for reliable circuit protection. This device operates efficiently at an amperage rating of 45 A, making it suitable for various electrical systems. Designed for single-phase applications, it effectively handles voltages ranging from 120 VAC to 277 VAC in the alternating current mode. For direct current setups, it supports a voltage rating of up to 125 VDC.
The breaker has an interrupt rating of 22 kA, ensuring it can handle substantial fault currents. With a single pole configuration, it simplifies installation and connection. The mounting type is bolt-on, allowing for secure attachment within electrical panels. The load-side lug terminal connection enhances adaptability, ensuring reliable connectivity.
Frequency compatibility spans from 50 Hz to 60 Hz, making it versatile for a range of installations. The actuator mechanism is a toggle type, providing straightforward operation for users. This ED41B045 circuit breaker effectively balances performance and protection, ensuring operational integrity in various applications.
