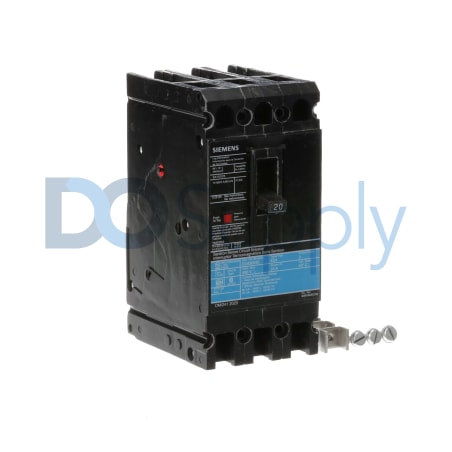

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED43B020
The Siemens ED43B020 is a circuit breaker engineered to handle a rated voltage of up to 600 V AC while accommodating a rated current of 20.0 A. This unit features a three-pole configuration intended for three-phase systems and utilizes thermal magnetic protection for reliable operation.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED43B020
| Manufacturer | Siemens |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED43B020 |
| UPC | 783643209374 |
| Rated Voltage | 600 V AC |
| Rated Current | 20.0 A |
| Number of Poles | 3 Poles |
| Phase Type | 3-Phase |
| Connection Type | Bolt-on Connection |
| Interrupting Rating at 480 V | 18 kA |
| Interrupt Rating at 240 V AC | 65 kA |
| Protection Type | Thermal Magnetic Protection |
| Terminal Connection | Load Side Lug Terminal |
| Wire Gauge | AWG 14 to AWG 10 |
The Siemens ED43B020 circuit breaker serves as a vital component in electrical distribution systems, rated to operate at 600 V AC. It is capable of handling a current of 20.0 A and features a configuration of three poles, suitable for three-phase operation. This unit is equipped with thermal magnetic protection, providing enhanced safety and performance under different load conditions.
The interrupting capability is notable, with a rating of 18 kA at 480 V and 65 kA at 240 V, ensuring effective protection against short circuits. This breaker features a bolt-on connection type, making installation straightforward while providing secure integration into existing systems. For terminal connections, it offers load side lug terminals, designed for reliability.
In terms of wiring, the device accommodates a wire gauge from AWG 14 to AWG 10. This flexibility allows the circuit breaker to be used in diverse applications while maintaining effectiveness in performance. The Siemens ED43B020 combines robustness with functionality, making it a suitable choice for various industrial and commercial electrical systems.
