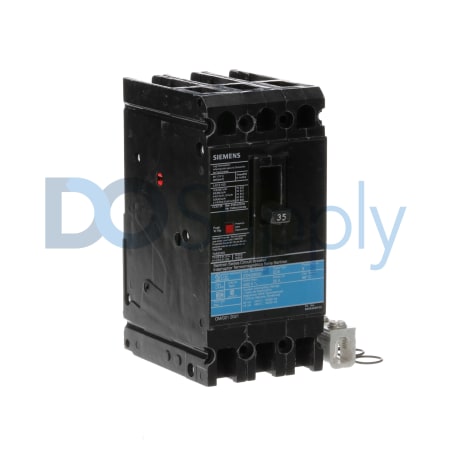

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED43B035
Siemens' ED43B035 is a molded case circuit breaker designed for diverse electrical needs. This unit features three poles and is rated for 35 Amperes with voltage capacities of 480 Volts AC and 250 Volts DC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED43B035
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED43B035 |
| GTIN | 00 783643209404 |
| Poles | 3 Poles |
| Amperage Rating | 35 Amperes |
| Frame | ED Frame |
| Voltage Rating | 480 Volts AC, 250 Volts DC |
| Trip Unit | Thermal Magnetic |
| Trip Function | Long Time Overload + Instantaneous Short Circuit |
| Wire Size Range | 10-1/0 AWG |
| Certification | UL, CSA, HACR |
| Connection Type | Load Side Lugs Only |
| Operating Temperature | -25 to 70 Degrees Celsius |
The Siemens ED43B035 serves as a robust molded case circuit breaker, optimized for a variety of applications. It is structured with three poles and provides a current rating of 35 Amperes. This unit is suitable for use at voltage levels of up to 480 Volts AC and 250 Volts DC.
The breaker employs a thermal magnetic trip unit that offers reliable protection against overload conditions and instantaneous short circuits. This ensures circuit safety and stability under varying load conditions. The wire size compatibility for this model spans from 10 AWG to 1/0 AWG, which accommodates different installation needs.
Designed to meet industry standards, the ED43B035 is certified by UL, CSA, and HACR, affirming its reliability and compliance. Connection at the load side is made via lugs only, which simplifies the installation process. Additionally, this circuit breaker can function in a temperature range from -25 to 70 degrees Celsius, making it versatile for environments with fluctuating temperatures. Overall, the Siemens ED43B035 molded case circuit breaker is engineered for efficiency, safety, and resilience in demanding industrial conditions.
