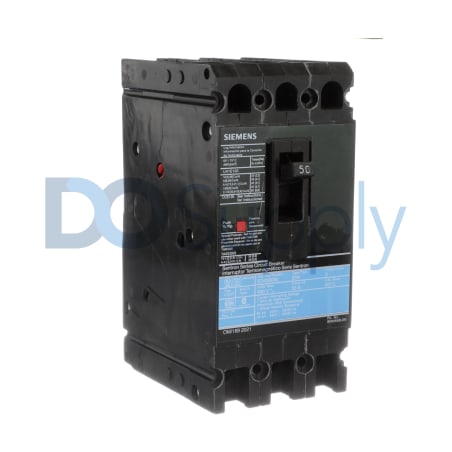

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED43B050
The Siemens ED43B050 is a molded case circuit breaker configured for three-phase applications. It is rated for a current of 50 amperes and operates within a frequency range of 50 to 60 Hz. This breaker is essential for ensuring circuit reliability and safety.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED43B050
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED43B050 |
| UPC | 783643209435 |
| Rated Current | 50 A |
| Connection Type | Load lug |
| Frame Type | ED Frame |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Mounting Type | Panel Mount |
| Interrupt Rating | 18 KA |
| Phase Type | 3 Phases |
| Number of Poles | 3 poles |
| Trip Type | Thermal/Magnetic Trip |
The ED43B050 is a molded case circuit breaker manufactured by Siemens as part of the SENTRON series. This device is built to support a rated current of 50 A, and it is suitable for three-phase electrical systems. Engineered for panel mounting, it offers an installation-friendly design, enabling straightforward integration within control panels. The frame type is designated as ED, ensuring that it meets reliability and performance standards.
This circuit breaker operates efficiently within a frequency range of 50 Hz to 60 Hz, making it versatile for various applications. It employs a thermal/magnetic trip type that responds appropriately to both overload and short-circuit conditions, thereby maintaining circuit safety. The interruption capacity stands at 18 KA, which signifies its ability to manage fault currents effectively, ensuring high levels of operational security.
Connections are facilitated via load lugs, providing reliable contact points for electrical integration. This equipment is configured with three poles, enhancing its capability to distribute power in multi-phase setups. Overall, the Siemens ED43B050 circuit breaker combines essential protection features with a robust design to effectively handle electrical demands.
