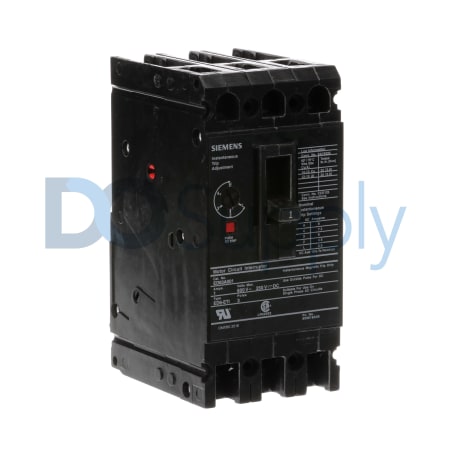

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED63A001
The Siemens ED63A001 is a molded case circuit breaker designed for efficient electrical management. Its thermal magnetic and instantaneous trip ability provides reliable protection across multiple phases.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63A001
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63A001 |
| UPC | 783643210783 |
| Amperage Rating | 1 A |
| Trip Type | Thermal Magnetic/Instantaneous |
| Mounting Type | Panel Mount |
| Voltage Rating | 600 VAC |
| Connection Type | Bolt-On |
| Approvals | UL, IEC |
| Protection | Magnetic |
| Poles | 3 Poles |
| Interrupt Rating (600V) | 18 kAIC |
| Standards Compliance | RoHS |
| Terminal Connection | Load Side Lug |
| Phase | 3 Phase |
| Interrupt Rating (480V) | 25 kAIC |
The Siemens ED63A001 circuit breaker belongs to the SENTRON series and guarantees dependable performance in various conditions. Designed as a molded case circuit breaker, it is rated for 1 Amp and operates on a voltage of up to 600 VAC. The breaker is structured for three-phase systems, maintaining high operational standards while ensuring safety.
Capable of thermal magnetic and instantaneous tripping, this device features a panel mount installation, allowing it to be easily integrated into existing setups. The connection is realized through a bolt-on method, ensuring secure fastening within the electrical system. This circuit breaker is equipped with three poles, providing ample support for multi-phase applications.
With a robust interrupt rating of 18 kAIC at 600 V and 25 kAIC at 480 V, the ED63A001 effectively manages fault conditions, contributing to system reliability and longevity. This unit also carries necessary approvals from both UL and IEC standards, alongside RoHS compliance, affirming its quality and adherence to safety regulations. Terminal connections are made via load side lugs, making installation straightforward. Overall, the Siemens ED63A001 is a robust choice for reliable circuit protection in various electrical applications.
