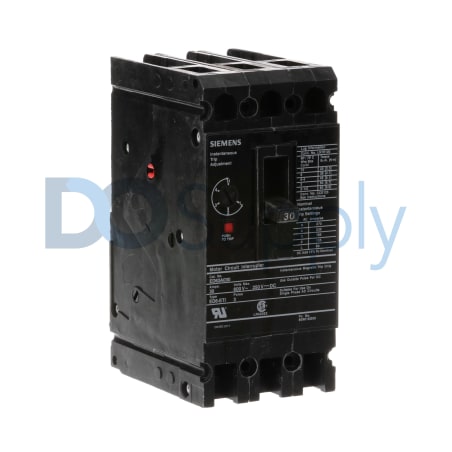

ED63A030
The Siemens ED63A030 is a low voltage circuit breaker designed for reliable performance in industrial settings. Equipped with a magnetic trip mechanism, it processes an electrical rating of 30 Amps while supporting 3 poles for effective current management.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63A030
| Manufacturer | Siemens |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63A030 |
| UPC | 783643210844 |
| Type | Low Voltage |
| Trip Type | Magnetic |
| Frame Size | ED Frame |
| Poles | 3 Poles |
| Current Rating | 30 Amps |
| Interrupting Rating @ 600V | 18 kAIC |
| Interrupting Rating @ 480V | 25 kAIC |
| Load Lugs | Yes |
| Wire Size | 10 - 1/0 AWG |
| Certification | UL |
The Siemens ED63A030 circuit breaker exemplifies reliable low voltage circuit protection. Its magnetic trip type ensures immediate response to overcurrent situations, safeguarding electrical systems. Designed with an ED frame, this breaker accommodates three poles, delivering a current capacity of 30 Amps.
This unit is capable of handling substantial electrical disturbances, with interrupting ratings of 18 kAIC at 600 volts and 25 kAIC at 480 volts. Such capacities ensure that in the event of a fault, the breaker can interrupt safely without risking equipment damage. Load lugs are included for direct connections, facilitating easy installation.
The flexibility of wire sizes from 10 AWG to 1/0 AWG enhances its applicability in different environments. The Siemens ED63A030 is UL-certified, affirming its compliance with safety standards and reliability for users requiring dependable circuit protection.
