ED63A050

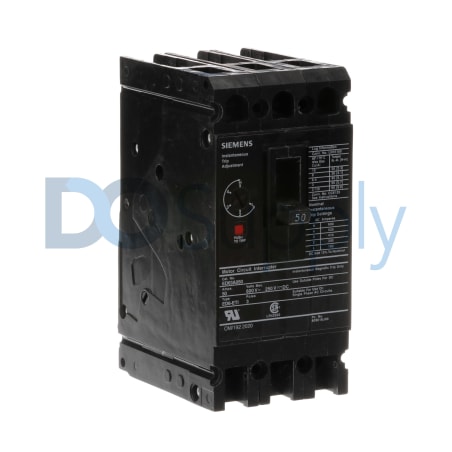

The ED63A050 is a molded case circuit breaker from Siemens' SENTRON series. This device is rated for 50 amperes and is designed to work with three-phase systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63A050
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63A050 |
| UPC | 783643210851 |
| Ampere Rating | 50 Amps |
| Number of Poles | 3 Poles |
| Voltage Rating (AC) | 600 Volts AC |
| Voltage Rating (DC) | 250 Volts DC |
| Interrupting Capacity (480V AC) | 25 kAIC at 480 Volts AC |
| Interrupting Capacity (600V AC) | 18 kAIC at 600 Volts AC |
| Phase | 3 Phase |
| Protection Type | Magnetic-Only (Instantaneous Trip) |
| Connection Type | Bolt-On Terminals |
| Terminal Configuration | Load Side Lugs Only |
| Compatible Wire Range | AWG 10 to 1/0 (Copper or Aluminum) |
| Frame Type | ED Frame |
The Siemens ED63A050 is engineered as a molded case circuit breaker within the SENTRON product series. It is designed for three-phase applications and has a current rating of 50 Amps. This breaker supports a maximum voltage of 600 Volts for AC and 250 Volts for DC power systems.
In terms of fault management, the device boasts significant interrupting capacity ratings: 25 kAIC at 480 Volts AC and 18 kAIC at 600 Volts AC, making it suitable for various electrical environments.
The protection scheme for this circuit breaker is based on instant tripping through a magnetic-only mechanism, ensuring rapid response during fault conditions.
For installation, the ED63A050 utilizes bolt-on terminals, allowing for secure connections. It has a terminal configuration designed only for load side lugs. This molded case circuit breaker accommodates a wire size range of AWG 10 to 1/0 for both copper and aluminum wiring, providing versatility in electrical setups. The frame type of this device is classified as an ED frame, ensuring compatibility with specific mounting systems.
