ED63A100

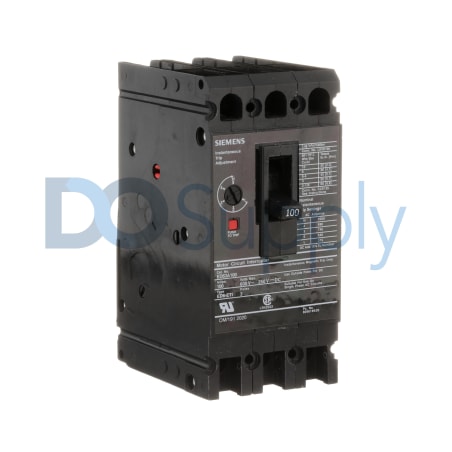

The Siemens ED63A100 is a molded case circuit breaker designed for three-phase systems. Rated for 100 Amperes with a voltage capacity of up to 600 Volts AC, it features a thermal magnetic trip unit and instantaneous protection functions.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63A100
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63A100 |
| UPC | 783643210868 |
| System Phase | 3-phase |
| Voltage Capacity | 600 Volts AC |
| Trip Unit Type | Thermal magnetic |
| Terminal Connection | Load side lugs |
| Amperage | 100 Amperes |
| Number of Poles | 3 poles |
| Protection Functions | Instantaneous |
| Frame Type | ED frame |
| Compliance Standards | IEC and UL-certified |
| Ampere Interrupting Capacity | 25 kiloamperes at 240 Volts AC and 18 kiloamperes at 600 Volts AC |
| Mounting Style | Bolt-on mount |
The Siemens ED63A100, part of the SENTRON series, serves as a molded case circuit breaker optimized for three-phase electrical systems. It supports a maximum operational voltage of 600 Volts AC, making it suitable for various commercial and industrial uses. With an amperage rating set at 100 Amperes, this device effectively manages power distribution.
Built with an ED frame, the breaker incorporates a thermal magnetic trip unit that enables instantaneous protection against overload and short circuit conditions. This feature ensures that the circuit breaker responds promptly to fault conditions, enhancing system safety.
Connections for this breaker are established via load side lugs, which simplify installation and secure the connection. The ED63A100 comprises three poles, catering to diverse circuit configurations. It also meets stringent international compliance standards, with certification from both IEC and UL.
For interrupting capabilities, the ED63A100 can manage up to 25 kiloamperes at 240 Volts AC and up to 18 kiloamperes at its maximum voltage rating of 600 Volts AC, ensuring robust performance in fault conditions. The mounting style is bolt-on, facilitating ease of installation in various panel setups.
