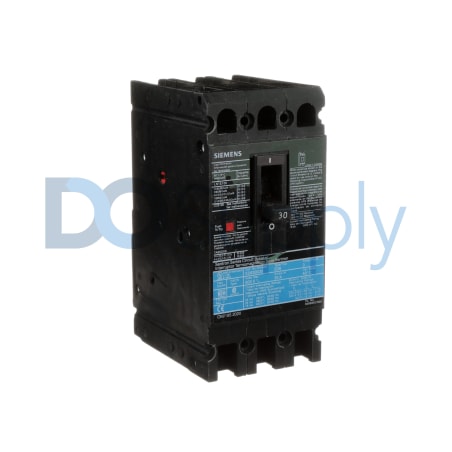

ED63B030
The Siemens ED63B030 is a molded case circuit breaker designed for robust electrical management. This unit offers a rated current of 30 A and supports an AC voltage rating of 600 V, alongside a DC rating of 250 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63B030
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63B030 |
| UPC | 783643209695 |
| Rated Current | 30 A |
| Connection Type | Load Lug |
| Frame Type | ED Frame |
| Phase Type | 3 Phases |
| Number of Poles | 3 Poles |
| Interrupt Rating | 18 KAIC at 600V, 25 KAIC at 480V |
| Rated Voltage (AC) | 600 V AC |
| Rated Voltage (DC) | 250 V DC |
| Trip Type | Thermal Magnetic Trip |
| Wire Size | 10 to 1/0 AWG |
The ED63B030, part of Siemens' SENTRON series, functions as a molded case circuit breaker tailored to meet industrial electrical standards. Its rated current stands at 30 amps, making it suitable for a variety of applications. The breaker supports a wide operational voltage, rated for 600 volts alternating current and 250 volts direct current.
This device operates with a thermal magnetic trip mechanism, ensuring responsive function under overload or short circuit conditions. The breaker is structured to handle three-phase configurations and is composed of three distinct poles, providing enhanced circuit control. The frame is classified as ED, which ensures compatibility with established standards for secure mounting.
In terms of performance, the ED63B030 circuit breaker exhibits an interrupt rating of 18 KAIC when operating at 600 volts and a robust rating of 25 KAIC at 480 volts, safeguarding your electrical systems from potential faults. The load lug connection type simplifies integration into various setups. It can accommodate wire sizes ranging from 10 AWG to 1/0 AWG, allowing for flexibility in installation processes.
