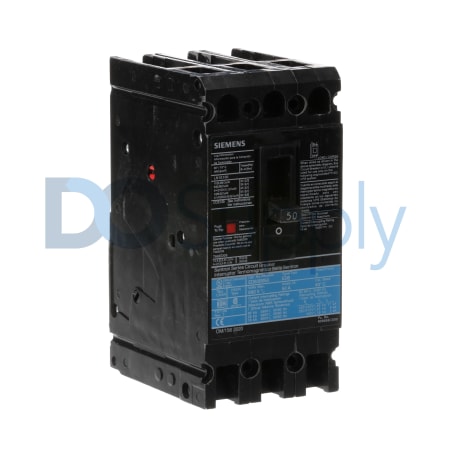

Product image is representative; revision or series may vary. Contact us to request a specific version.
ED63B050
The Siemens ED63B050 is a molded case circuit breaker designed for 3-phase systems. Rated for 50 A and up to 600 VAC, it features thermal magnetic trip technology for effective overload and short-circuit protection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ED63B050
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | ED63B050 |
| UPC | 783643209732 |
| Phase Type | 3-Phase |
| Rated Current | 50 A |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600 VAC |
| Connection Type | Bolt-On |
| Poles | 3 Poles |
| Terminal Connection | Load Side Lug |
| Wire Gauge | AWG 10 to 1/0 Cu/Al |
| Mounting Type | Panelboard |
| Protection | Overload and Short-Circuit |
| Approval | UL, IEC |
| Standards Compliance | RoHS |
The ED63B050 from Siemens, part of the SENTRON series, is a molded case circuit breaker engineered for three-phase electrical systems. It has a rated current capacity of 50 A, making it suitable for various applications. With a voltage rating of up to 600 VAC, this circuit breaker efficiently manages power distribution.
Equipped with a thermal magnetic trip mechanism, the circuit breaker offers reliable protection against overloads and short-circuits. It features three poles, enhancing its functionality in three-phase setups. The bolt-on connection type ensures a secure installation, while load side lugs facilitate effective electrical connections.
This model is designed for mounting on panelboards, providing versatility in installation options. It is compatible with various wire gauges, supporting AWG sizes from 10 to 1/0 in both copper and aluminum. Additionally, the ED63B050 adheres to multiple safety and environmental standards, having approvals from UL and IEC, and meeting RoHS compliance requirements.
