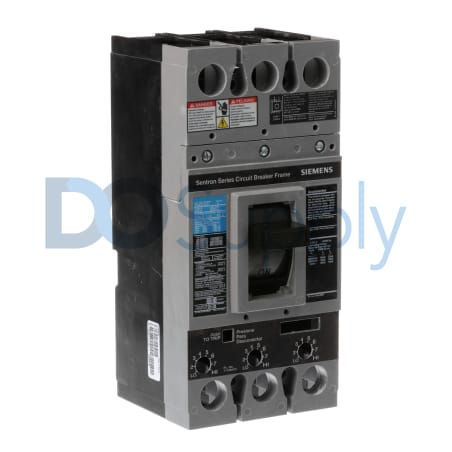

Product image is representative; revision or series may vary. Contact us to request a specific version.
FD63F250
The Siemens FD63F250 is a molded case switch within the SENTRON series. This switch has a current rating of 250 amps and is suitable for voltages up to 600 volts AC and up to 500 volts DC, making it versatile for a variety of electrical applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for FD63F250
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Switch |
| Product Line | SENTRON |
| Part Number | FD63F250 |
| UPC | 783643211537 |
| Amperage Rating | 250 Amps |
| Overload Protection | No |
| Frame | F-Frame (FD) |
| Protection | No thermal overload protection |
| Number of Poles | 3 Poles |
| Maximum Voltage | 600 Volts AC |
| DC Voltage Rating | 500 Volts DC |
| Magnetic Protection | Fixed Instantaneous Override |
| Mounting | Unit Mount (Enclosure) or Panel Mount |
| Certifications | UL Listed, CSA Certified |
Siemens offers the FD63F250 molded case switch as part of their SENTRON series. This electrical component is designed to manage up to 250 amps of current. It is capable of handling voltages up to 600 volts AC and 500 volts DC, which broadens its application range in both AC and DC circuits.
The FD63F250 features a three-pole configuration and is constructed with an F-frame. Notably, this switch lacks any form of thermal overload protection, providing a simple yet effective solution for specific circuit management needs. Instead, it includes a fixed instantaneous magnetic protection mechanism, ensuring quick response to overcurrent conditions.
For installation convenience, this unit can be mounted in an enclosure or directly onto a panel, allowing flexibility in arrangement and design. The product is certified as UL Listed and CSA Certified, confirming its adherence to recognized safety standards in electrical systems. These features make the Siemens FD63F250 molded case switch a reliable choice for various high-power applications.
