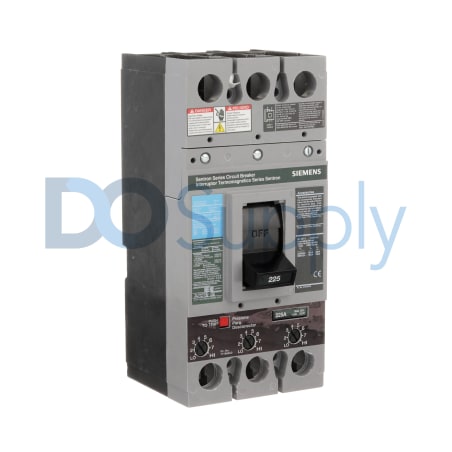

Product image is representative; revision or series may vary. Contact us to request a specific version.
FXD63B225
The FXD63B225 is a robust molded case circuit breaker from Siemens' SENTRON series. This unit is structured for three-phase systems and can manage a rated current of 225 A with a maximum rated voltage of 600 V AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for FXD63B225
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | FXD63B225 |
| UPC | 783643211285 |
| Phase Type | 3 Phase |
| Number of Poles | 3 Poles |
| Rated Current | 225 A |
| Rated Voltage (AC) | 600 V AC |
| Rated Voltage (DC) | 250 VDC/500 VDC |
| Interrupt Rating at 240V AC | 65 kA |
| Interrupt Rating at 480V AC | 35 kA |
| Interrupt Rating at 600V AC | 22 kA |
| Trip Unit Type | Thermal-Magnetic |
| Connection Type | Line/Load Lugs |
The Siemens FXD63B225 is a molded case circuit breaker that provides essential protection in electrical systems. This device is built for three-phase configurations and includes three poles for reliable current management. It has a rated current capacity of 225 A, making it suitable for various demanding applications.
In terms of voltage, the circuit breaker can handle up to 600 V AC and supports two DC voltage levels: 250 V and 500 V. Its interrupt ratings indicate the maximum fault currents the circuit breaker can handle without failing—65 kA at 240 V AC, 35 kA at 480 V AC, and 22 kA at 600 V AC. This robustness ensures safety under fault conditions.
The trip unit of the FXD63B225 is thermal-magnetic, which combines thermal and magnetic protection features to safeguard against overloads and short circuits. The connection type for this circuit breaker is via line/load lugs, ensuring secure terminal connections for both input and output. As a part of the Siemens SENTRON series, this circuit breaker delivers quality and safety to electrical installations, maintaining system integrity in various environments.
- FXD638225
