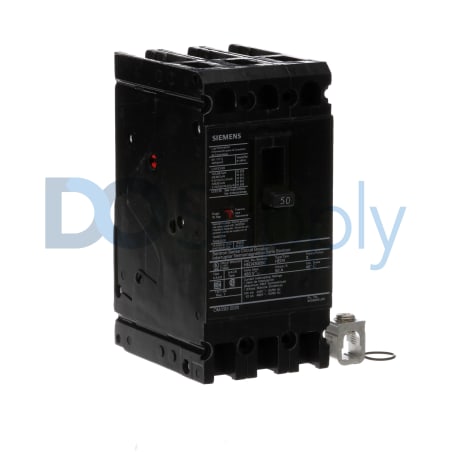

Product image is representative; revision or series may vary. Contact us to request a specific version.
HED43B050
The Siemens HED43B050 is a circuit breaker engineered to perform reliably in electrical distribution systems. This unit falls under the SENTRON series, showcasing a robust design suitable for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HED43B050
| Manufacturer | Siemens |
|---|---|
| Product Type | Circuit Breaker |
| Product Line | SENTRON |
| Part Number | HED43B050 |
| UPC | 783643210165 |
| Frame | ED Frame |
| Trip Type | Thermal Magnetic |
| Number of Poles | 3 Poles |
| Current Rating | 50 Amps |
| Interrupting Rating | 42 kAIC |
| Wire Size | 10 - 1/0 AWG |
| Wire Type | Copper/Aluminum |
| Load Connection | Lugs |
| Certification | UL |
| High Breaking Capacity | Yes |
The HED43B050 from Siemens is classified as a circuit breaker within the SENTRON series, designed for dependable performance. It is built with an ED Frame and incorporates a thermal magnetic trip type, ensuring robust protection for electrical circuits. This breaker operates with three poles, making it suitable for various three-phase systems and ensuring effective current management.
This circuit breaker is rated for a maximum current of 50 amps with an interrupting capacity of 42 kAIC, which provides necessary safety against unexpected overloads. It is designed to handle wire sizes ranging from 10 AWG to 1/0 AWG, making it versatile for different installation requirements. Both copper and aluminum wire types can be used for connections, enhancing compatibility in various applications.
The load connection is made using lugs, streamlining the installation process. Furthermore, this product is UL certified, adhering to strict safety and performance standards, which assures users of its reliability and quality. The HED43B050 also features a high breaking capacity, providing extra assurance of safety during fault conditions.
