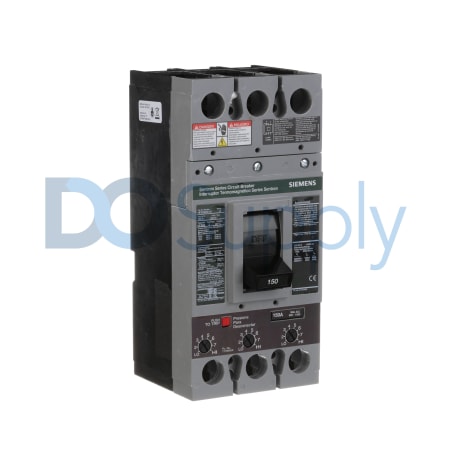

Product image is representative; revision or series may vary. Contact us to request a specific version.
HFXD63B150
The HFXD63B150 is a molded case circuit breaker from Siemens' SENTRON series. This device is rated for 150 amperes and features a thermal magnetic trip unit, ensuring reliable performance in a 3-phase connection configuration.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HFXD63B150
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | HFXD63B150 |
| UPC | 783643318144 |
| Input Phase Rating | 3-phase |
| Trip Unit Type | Thermal magnetic |
| Connection Configuration | Bolt-on |
| Current Capacity | 150 Amperes |
| Ampere Interrupting Capacity | 65 kiloamperes at 480 Volts AC |
| Voltage Capacity | 600 Volts AC |
| Actuator Type | Handle |
| Number of Poles | 3 poles |
| Terminal Connection Type | Load side lug |
| Frame Type | FD frame |
| Frequency Rating | 50 to 60 Hertz |
| Wire Size | 14 to 10 American Wire Gauge (AWG) or 6 to 4 American Wire Gauge (AWG) |
The Siemens HFXD63B150 molded case circuit breaker is engineered for robust electrical protection. As a component within the SENTRON series, this breaker is specifically designed for 3-phase applications with a current capacity of 150 amperes. It features a thermal magnetic trip unit, which provides accurate overload and short-circuit protection. The connection setup is bolt-on, allowing secure attachment to the electrical system.
Rated to operate at a maximum voltage of 600 volts AC, this circuit breaker is capable of handling significant fault conditions, boasting an interrupting capacity of 65 kiloamperes at 480 volts AC. With three poles, the HFXD63B150 provides effective distribution across multiple phases. The device is equipped with a handle actuator to facilitate manual operation.
Constructed with an FD frame type, this molded case circuit breaker supports a variety of wire sizes, accommodating American Wire Gauge (AWG) from 14 to 10 AWG, as well as 6 to 4 AWG, ensuring flexibility in installation. The frequency rating for this component ranges from 50 to 60 Hertz, making it suitable for numerous industrial applications.
