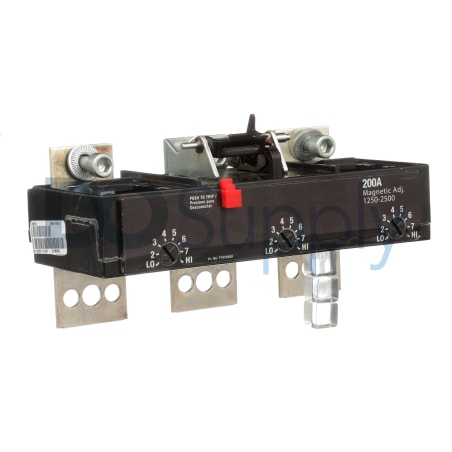

Product image is representative; revision or series may vary. Contact us to request a specific version.
JD63T225
The Siemens JD63T225 is a molded case circuit breaker designed for efficient power management in 3-phase applications. It supports a rated current of 225 amperes and operates at a voltage level of 600 volts AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for JD63T225
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SENTRON |
| Part Number | JD63T225 |
| UPC | 783643213456 |
| Number of Poles | 3 Poles |
| Rated Current | 225 A |
| Rated Voltage | 600 V AC |
| Phase Type | 3-Phase |
| Connection Type | Bolt-on Connection |
| Function | LI - Long-Time and Instantaneous |
| Operating Humidity | 80% (non-Condensing) |
| Installation Altitude | 1000 MSL |
| Protection Type | Thermal Magnetic |
| AIC Rating | 35 kA at 480 V |
Siemens' JD63T225 molded case circuit breaker is optimized for diverse electrical systems requiring dependable protection. This breaker is rated for a substantial current of 225 A and is compatible with 3-phase configurations. It operates effectively at a voltage rating of 600 V AC.
The JD63T225 employs a bolt-on connection method, allowing for stable electrical connections. With its thermal magnetic operating mechanism, this unit provides both long-time and instantaneous trip functions designed to protect against overloads and short circuits. The device is rated with an AIC capacity of 35 kA at 480 V, contributing to its reliability under fault conditions.
In terms of environmental specifications, the JD63T225 remains effective in humidity levels up to 80% (non-condensing) and is rated for installation at altitudes of 1000 meters above mean sea level. This molded case circuit breaker presents a robust solution for electrical distribution, safeguarding equipment in various applications.
