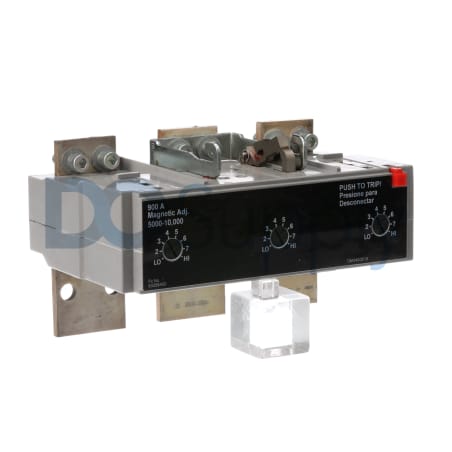

Product image is representative; revision or series may vary. Contact us to request a specific version.
ND63T100
The Siemens ND63T100 is a thermal magnetic trip unit designed for use in various electrical systems. Capable of handling a rated current of 100 A, it operates at a voltage of up to 600 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ND63T100
| Manufacturer | Siemens |
|---|---|
| Product Type | Trip Unit |
| Product Line | SENTRON |
| Part Number | ND63T100 |
| UPC | 783643215689 |
| Terminal Connection | Line and Load Side Lug |
| Protection Type | Thermal Magnetic |
| Interrupt Rating at 600 V | 25 KAIC |
| Interrupt Rating at 480 V | 50 KAIC |
| Number of Poles | 3 Poles |
| Rated Voltage | 600V |
| Rated Current | 100 A |
| Frame Type | ND Frame |
| Operating Humidity | 80% (Non-Condensing) |
| Installation Altitude | 1000 MSL |
Siemens produces the ND63T100 thermal magnetic trip unit, engineered for effective circuit protection. Designed for a rated current of 100 A, this unit operates at a maximum voltage of 600 V. It is configured with three poles, allowing it to be integrated into three-phase systems.
With terminal connections established through line and load side lugs, installation is straightforward. The ND63T100 trip unit is capable of interrupting fault currents up to 50 KAIC at 480 V and 25 KAIC at 600 V, ensuring reliable protection against potential overloads and short circuits.
Enclosed in an ND frame type, this trip unit is designed for optimal space efficiency. It can function effectively in humid environments, provided that humidity levels do not exceed 80% non-condensing. Moreover, it can be installed at altitudes of up to 1000 meters above sea level without derating. The Siemens ND63T100 trip unit exemplifies reliable performance in modern electrical systems.
