S01ED62A

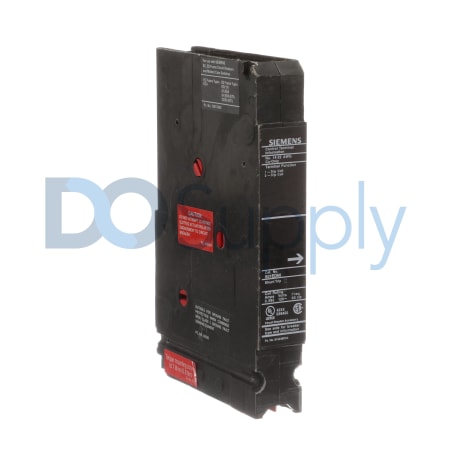

The S01ED62A by Siemens is an internal accessory for low voltage molded case circuit breakers, designed to enhance electrical control capabilities. It operates at a shunt trip control voltage of 120 VAC with auxiliary contacts rated for 240 VAC, allowing diverse integration in various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for S01ED62A
| Manufacturer | Siemens |
|---|---|
| Product Type | Low Voltage Molded Case Circuit Breaker Internal Accessory |
| Product Line | SENTRON |
| Part Number | S01ED62A |
| UPC | 783643234581 |
| Control Voltage (Shunt Trip) | 120 VAC |
| Auxiliary Switch Voltage Rating | 240 VAC |
| Auxiliary Switch Contact Configuration | (1NO) and (1NC) |
| Mounting Type | Pole Mount |
| Connection Type | Wire Lead / Pigtail Connection |
| Frequency Rating | 50/60 Hz |
| Actuator Type | Solid Hinge Shaft |
| Trip Activation | Shunt Coil Energized |
| Auxiliary Contact Type | Form C (Change-Over) Contact |
| Frame | ED FRAME |
| Auxiliary Switch Current | 15 A |
| Operating Temperature | -20 °C to +40 °C |
| Compliance | RoHS Compliant |
The Siemens S01ED62A serves as a vital low voltage molded case circuit breaker internal accessory. Designed for precise control and functionality, this component utilizes a control voltage of 120 VAC specifically for shunt trip activation. The auxiliary switch operates at a voltage rating of 240 VAC and is configured with one normally open (1NO) and one normally closed (1NC) contact.
For mounting, the unit employs a pole mount style, ensuring stability and easy installation. Wiring connections are achieved through wire lead or pigtail setups, facilitating straightforward integration into existing systems.
The device features a solid hinge shaft actuator that ensures reliable operation upon activation. Auxiliary contacts are categorized as Form C (change-over), providing flexibility in electrical control and configuration. The maximum current for the auxiliary switch is rated at 15 A, suitable for various applications.
This accessory operates effectively within a frequency range of 50 to 60 Hz and is rated to function within temperature conditions from -20 °C to +40 °C. Additionally, the S01ED62A complies with RoHS regulations, ensuring its adherence to environmental standards.
