SLVBH4660G

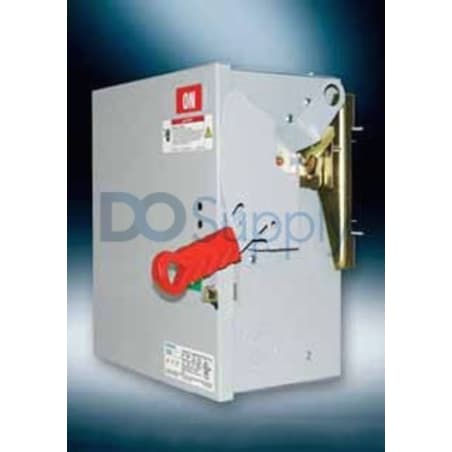

Siemens' SLVBH4660G is a fusible bus plug designed to handle high current applications up to 600 A. This device operates at a 600 VAC voltage rating and is suitable for 3-phase systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for SLVBH4660G
| Manufacturer | Siemens |
|---|---|
| Product Type | Fusible Bus Plug |
| Product Line | SENTRON |
| Part Number | SLVBH4660G |
| UPC | 783643549692 |
| Weight | 230.00 lbs (104.33 kg) |
| Voltage Rating | 600 VAC |
| Phase Type | 3-Phase |
| Number of Wires | 4 Wires |
| Orientation Type | Horizontal Mount |
| Ground Type | Built-In Ground Path |
| Protection Class | IP40 |
| Current Rating | 600 A |
| Fuse Class | R, H, and K |
| Dual Cover Interlock | Included |
| Busway System Types | Aluminum and Copper |
The SLVBH4660G model from Siemens represents a robust fusible bus plug within their SENTRON series. It is engineered to operate within a high voltage environment, rated at 600 VAC and supporting a current rating of 600 A. Designed for three-phase systems, it incorporates four wires to effectively facilitate power distribution.
This bus plug is horizontally mounted, allowing for straightforward installation in various configurations. Its robust build includes a built-in ground path, enhancing safety during operation and minimizing the risk of electrical faults. Furthermore, the device is rated at protection class IP40, effectively defending against solid contaminants while ensuring operational integrity.
The SLVBH4660G supports multiple fuse classes—R, H, and K—and features a dual cover interlock system to provide added safety during maintenance and operation. Additionally, it is compatible with both aluminum and copper busway systems, providing versatility in applications. This makes it a reliable choice for facilities seeking to manage heavy electrical loads efficiently and safely.
