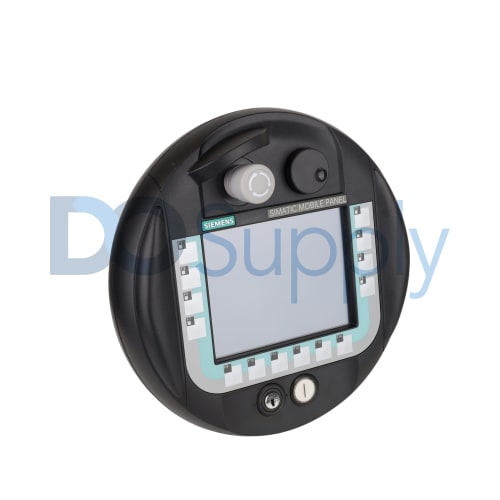

Siemens SIMATIC 6AV6645-0AC01-0AX0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6AV6645-0AC01-0AX0

|
Need a Specific Revision?

The Siemens 6AV6645-0AC01-0AX0 is a compact operator panel in the SIMATIC series, featuring a 5.7-inch STN color display. This unit supports 256 colors at a resolution of 320 x 240 pixels, making it suitable for various industrial control applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6AV6645-0AC01-0AX0

ManufacturerSiemens
Product TypeOperator Panel
Product LineSIMATIC
Part Number6AV6645-0AC01-0AX0
UPC662643029697
Weight7.00 lbs (3.18 kg)
Display TypeSTN
Screen Diagonal5.7 inches
Color DisplayYes
Number of Colors256
Resolution320 x 240 pixels
Backlighting MTBF50,000 hours
Control ElementsKeys and touchscreen
Number of Function Keys14 (8 with LEDs)
Touch ScreenAnalog, resistive
Special Operator ControlsStop button, Acknowledgment button, Key-operated switch, Illuminated pushbutton, Handwheel
Supply Voltage24 V DC
Memory Available for User Data2,048 kbytes
Interfaces1x RS 422, 1x RS 485
Cooling SystemIntegrated fan cooling system to maintain optimal operating temperature
Request a Repair

The Siemens 6AV6645-0AC01-0AX0, part of the SIMATIC series, serves as an efficient operator interface designed for industrial environments. Featuring a 5.7-inch STN display, this panel supports a full color range of 256 colors and provides a clear resolution of 320 x 240 pixels. A long lifespan of 50,000 hours for backlighting offers added durability for extended use.

User interaction is facilitated through 14 accessible function keys, with 8 equipped with LEDs for visibility in dim settings. The operator panel integrates both tactile keys and an analog resistive touchscreen, enhancing versatility in control and navigation. Specialized controls include a stop button, an acknowledgment button, and a key-operated switch for secure operations, along with an illuminated pushbutton and a handwheel for precise adjustments.

Powering the device requires a 24 V DC supply, ensuring compatibility with various systems. It also offers ample memory for user data, boasting 2,048 kbytes for storing configurations and operational data. Connectivity is provided through one RS 422 and one RS 485 interface, enabling seamless communication with other devices.

To maintain optimal operational conditions, the unit includes an integrated fan cooling system, which is crucial for preventing overheating during continuous use.
