Siemens SIMATIC 6AV6645-0BA01-0AX0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6AV6645-0BA01-0AX0

|
Need a Specific Revision?

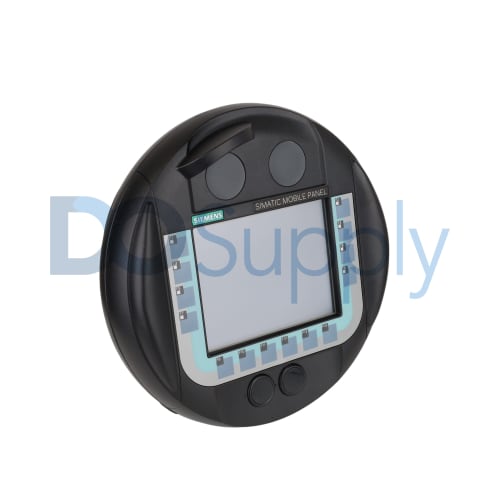

The 6AV6645-0BA01-0AX0 mobile panel from Siemens offers intuitive functionality combined with a host of technical features. With a resolution of 320 x 240 pixels, the 5.7-inch diagonal display facilitates efficient user interaction, making it suitable for diverse applications in industrial environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6AV6645-0BA01-0AX0

ManufacturerSiemens
Product TypeMobile Panel
Product LineSIMATIC
Part Number6AV6645-0BA01-0AX0
UPC662643397024
Weight0.06 lbs (0.03 kg)
Resolution320 x 240 pixels
MemoryFlash / RAM
Screen Diagonal5.7 inches
User Data Memory2048 KB
Backlighting MTBF (Mean Time Between Failures)50,000 Hours
ProcessorRISC 32-bit, 200 MHz
Interfaces1 x RS485, 1 x Ethernet
OperationKeys and Touch
Operating Temperature0 °C to +40 °C
ProtectionIP65 (Dust-tight, water jet protection)
Languages Supported5
Recipes100
Request a Repair

The 6AV6645-0BA01-0AX0 is a mobile panel that embodies advanced features tailored for industrial automation tasks. It includes a 5.7-inch screen with a pixel resolution of 320 x 240, which provides clarity for operators. The unit's internal architecture consists of Flash and RAM memory, supporting 2048 KB for user data optimization.

Performance capabilities of this panel are derived from a RISC 32-bit processor, operating at 200 MHz, enabling efficient management of processes. In terms of connectivity, the panel is equipped with one RS485 interface and one Ethernet interface, facilitating versatile communication options.

This device responds to both touch and key operations, allowing for user-friendly interaction with the system. The operating temperature range is from 0 °C to +40 °C, catering to varying environmental conditions. Additionally, the backlighting system boasts a mean time between failures (MTBF) of 50,000 hours, ensuring durability throughout its operational lifespan.

Its robust design provides an IP65 protection rating, ensuring complete dust tightness and protection against water jets. With support for five languages, it accommodates diverse user requirements and can store up to 100 recipes, making it a flexible tool for industrial applications.
