6ES7144-1GB41-0XB0

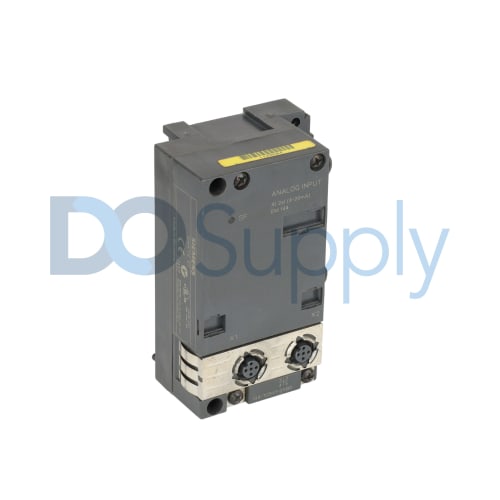

Siemens' 6ES7144-1GB41-0XB0 serves as a functional expansion module within the SIMATIC series, intended to enhance the capability of control systems. This compact device measures 4.33 inches in height, 2.36 inches in width, and 2.16 inches in depth, translating to 110 millimeters, 60 millimeters, and 55 millimeters respectively. Weighing in at 0.55 pounds (0.25 kilograms), it is designed for easy integration into existing setups.

The module features two analog inputs with an input current range of 4 to 20 milliamperes, allowing for flexibility in signal handling. An input resistance of 25 ohms further contributes to its performance, ensuring accurate readings across varying input conditions. With an input current drawn from the supply not exceeding 80 milliamperes, efficiency is a key trait of this module.

This expansion module is engineered to handle a maximum permissible input current of 40 milliamperes, providing an added level of safety. It also boasts a 12-bit input resolution, facilitating detailed measurement capabilities. The connections are secured through M12 circular connectors, which offer multiple pins, from 4 to 5, based on specific application needs. Designed for use with shielded cables, this module supports a longer installation with a maximum cable length of 30 meters (98.42 feet), thus ensuring robust signal integrity even over extended distances.

The power loss typical of the device stands at just 1 watt, underscoring its efficiency in operations. Overall, the 6ES7144-1GB41-0XB0 is reliable and highly useful for applications requiring precise analog input support.
