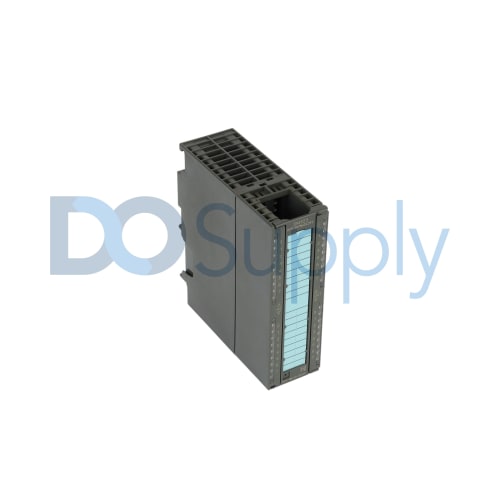

Siemens SIMATIC 6ES7323-1BL00-0AA0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6ES7323-1BL00-0AA0

|
Need a Specific Revision?

The Siemens 6ES7323-1BL00-0AA0 is an I/O module within the SIMATIC series, featuring a robust design for efficient input and output management. It includes 16 inputs and 16 outputs rated at a voltage of 24 VDC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6ES7323-1BL00-0AA0

ManufacturerSiemens
Product TypeI/O Module
Product LineSIMATIC
Part Number6ES7323-1BL00-0AA0
UPC662643117950
Weight0.19 lbs (0.09 kg)
Number of Inputs16 Inputs
Power Loss6.5 W
Rated Load Voltage24 VDC
Number of Outputs16 Outputs
Output Current0.5 A
Input Current7 mA
Minimum Operating Temperature0°C
Maximum Operating Temperature40°C
Minimum Storage Temperature0°C
Maximum Storage Temperature40°C
Request a Repair

Siemens manufactures the 6ES7323-1BL00-0AA0 as part of the SIMATIC series, which is designed as a versatile I/O module. This module supports 16 input lines, allowing for multiple connections to various sensors or systems. Each of these inputs operates at a rated load voltage of 24 VDC, ensuring compatibility with many control circuits. Additionally, it features 16 output lines, with each output capable of delivering a current of 0.5 A.

The power consumption of the module is rated at 6.5 watts, reflecting its efficient design aimed at minimizing energy loss during operation. For input functionality, the module requires a current of 7 mA, making it suitable for integration with various devices.

The 6ES7323-1BL00-0AA0 is built to perform reliably within specified environmental conditions. It can function in operating temperatures ranging from 0°C to 40°C, which aligns with the same range for storage, ensuring that it remains effective whether in operational use or while being stored. This I/O module is ideal for applications that necessitate reliable input and output interfacing in industrial automation.
