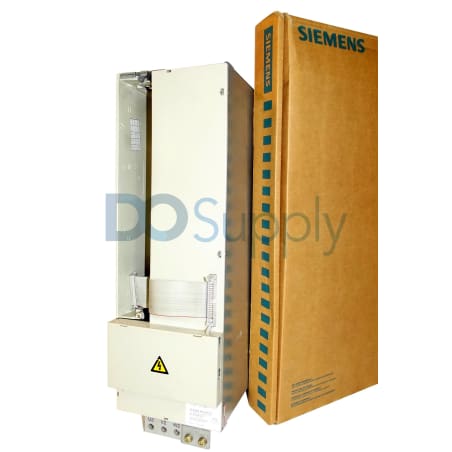

Siemens SIMODRIVE 6SN1123-1AA00-0GA0

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SN1123-1AA00-0GA0

|
Need a Specific Revision?

The Siemens 6SN1123-1AA00-0GA0 is an A/D power module for CNC and motor management applications. It features a 120 A current rating and allows for output voltage adjustments ranging from 0 to 600 V DC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SN1123-1AA00-0GA0

ManufacturerSiemens
Product TypeA/D Power Module, 1-axis
Product LineSIMODRIVE
Part Number6SN1123-1AA00-0GA0
Weight27.06 lbs (12.28 kg)
Current Rating120 A (1PH=45 A, Asynchronous=45 A)
CoolingInternal cooling (heat dissipation)
Input Voltage380-480 V AC
ApplicationCNC systems, motor control
Output Voltage0-600 V DC
Axis1-axis
Operating Temperature Range0°C to 45°C
Spare PartYes
Request a Repair

The 6SN1123-1AA00-0GA0 model from Siemens exemplifies a specialized A/D power module designed for single-axis control. It is engineered to handle a current rating up to 120 A, with specific breakdowns for applications like 1PH and asynchronous setups, each rated at 45 A. This versatility makes it suitable for CNC systems and motor control tasks.

Power input requirements range between 380 V and 480 V AC, while the module can deliver an output voltage that varies from 0 to 600 V DC. Internally cooled to manage thermal conditions effectively, the design integrates heat dissipation features directly into its framework, ensuring reliable operation.

Weighing in at about 5.56 kg, this module is easy to install and manage within existing systems. It is rated for an operating temperature from 0°C to 45°C. Note that this component is also available as a spare part, ensuring maintenance and operational flexibility in system setups.
