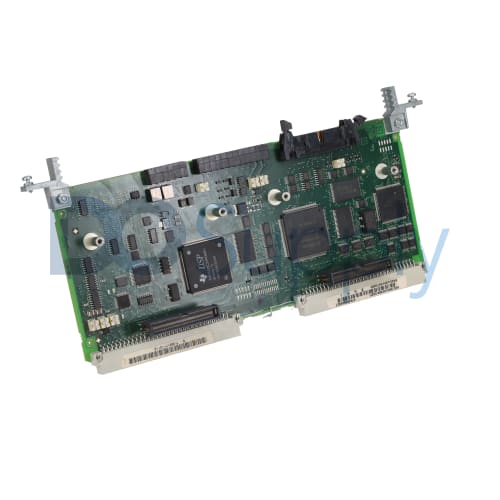

Siemens SIMOVERT MASTERDRIVES 6SE7090-0XX84-0AD1

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SE7090-0XX84-0AD1

|
Need a Specific Revision?

The Siemens 6SE7090-0XX84-0AD1 serves as a closed-loop motion control module designed for precise motor control applications. Operating with a processing speed of 60 MHz, it supports an array of communication protocols and interfaces, ensuring compatibility within automated systems.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SE7090-0XX84-0AD1

ManufacturerSiemens
Product TypeClosed-loop motion control module
Product LineSIMOVERT MASTERDRIVES
Part Number6SE7090-0XX84-0AD1
UPC662643065909
Weight0.25 lbs (0.11 kg)
SeriesAC Drives
Processing Speed60 MHz clock rate
Communication InterfacesRS232/RS485 serial ports
I/O CapabilitiesDigital and analog terminal strip
Fieldbus SupportPROFIBUS DP, PROFINET
Operating Temperature0°C to 55°C
Humidity Tolerance5% to 95% (non-condensing)
Ingress ProtectionIP20 rating
Built-In SafetyOvercurrent, short-circuit, thermal protection
Mounting DesignPanel integration, space-saving
Power Supply Frequency50 Hz / 60 Hz
System CompatibilitySIMOVERT MASTERDRIVES series
Request a Repair

Siemens presents the 6SE7090-0XX84-0AD1 as an advanced closed-loop motion control module, tailored for a variety of applications requiring high precision and reliability. This module processes data at a speed of 60 MHz, enabling rapid response times within complex control systems. Weighing in at roughly 0.5 kg, the module is designed for easy panel integration, helping save valuable installation space.

It features versatile communication capabilities, including RS232 and RS485 serial ports, making it adaptable to different system architectures. Furthermore, the module supports fieldbus systems such as PROFIBUS DP and PROFINET, enhancing connectivity and interoperability in automated environments.

The operating temperature for the 6SE7090-0XX84-0AD1 ranges from 0 degrees Celsius to 55 degrees Celsius, suitable for a wide spectrum of industrial settings. Additionally, it can function effectively at humidity levels from 5% to 95%, provided condensation does not occur. With an ingress protection rating of IP20, this unit is primarily intended for indoor usage within controlled environments.

Safety is paramount, and this module includes built-in features such as overcurrent, short-circuit, and thermal protection, ensuring safety during operations. The power supply operates at either 50 Hz or 60 Hz, consistent with standard electrical systems. Additionally, it is designed for compatibility with the SIMOVERT MASTERDRIVES series, facilitating integration into existing Siemens setups.
