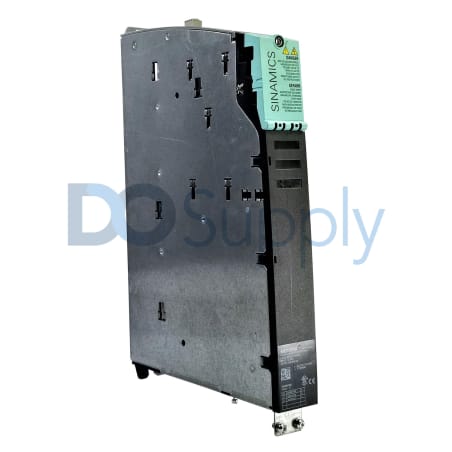

Siemens SINAMICS 6SL3120-1TE13-0AA3

Product image is representative; revision or series may vary. Contact us to request a specific version.

6SL3120-1TE13-0AA3

|
Need a Specific Revision?

The 6SL3120-1TE13-0AA3 from Siemens is a compact single-motor module designed for the SINAMICS series. It operates efficiently within a rated current of 3 A and includes various current levels to facilitate diverse applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6SL3120-1TE13-0AA3

ManufacturerSiemens
Product LineSINAMICS
Part Number6SL3120-1TE13-0AA3
UPC662643432794
Weight11.00 lbs (4.99 kg)
Module TypeSingle Motor Module, Booksize
Rated Current (In)3 A
Base-Load Current (IH)2.6 A
Intermittent Duty Current (Is6)3.5 A (40%)
Peak Current (Imax)6 A
Output Voltage0 … 0.717 × DC-link voltage
DC-Link Voltage Range510 … 720 VDC
DC-Link Capacitance110 µF
Electronics Power Supply Voltage24 VDC (20.4 – 28.8 V)
Electronics Current Drawn0.85 A
Unit Rating (Based on In)1.6 kW
Unit Rating (Based on IH)1.4 kW
Cooling MethodInternal Air Cooling
Max Ambient Temperature40 °C without derating
Request a Repair

The Siemens 6SL3120-1TE13-0AA3 belongs to the SINAMICS series and is a single motor module measuring in a compact booksize form factor. It is designed with a rated current of 3 A, critical for the consistent operation of connected motor systems. The module also features a base-load current of 2.6 A for sustainable workloads. In comparison, it can handle intermittent duty currents up to 3.5 A during specific operational periods, accommodated for 40% of the time. In instances requiring extra power, this module supports a peak current capability of 6 A.

The output voltage is adjustable, extending from 0 to 0.717 times the DC-link voltage, which offers flexibility depending on the application. This device functions within a DC-link voltage range of 510 to 720 VDC, ensuring compatibility with various power systems. The DC-link capacitance is rated at 110 µF, contributing to a stable voltage supply.

The module requires a supply voltage of 24 VDC to power its internal electronics, with an acceptable range between 20.4 and 28.8 V. The electronics draw 0.85 A. The overall unit has a rating based on the rated current at 1.6 kW and 1.4 kW based on the base-load current.

Cooling is conducted internally via air, crucial for maintaining operational efficiency. Weighing 5 kg, this unit is relatively lightweight. Furthermore, it can operate in ambient temperatures up to 40 °C without any derating, which is advantageous for diverse installation environments.
