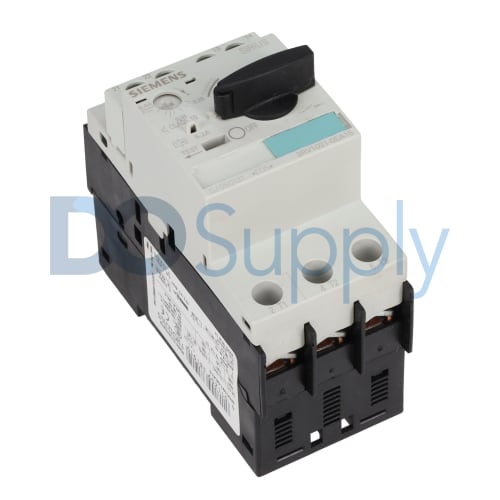

Siemens SIRIUS 3RV1021-0EA15

Product image is representative; revision or series may vary. Contact us to request a specific version.

3RV1021-0EA15

|
Need a Specific Revision?

Siemens’ 3RV1021-0EA15 is a circuit breaker designed to operate with a rated current of 0.4 amperes. Supporting a rated operating voltage of 690 volts, it efficiently manages electrical loads while adhering to IP20 protection standards.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 3RV1021-0EA15

ManufacturerSiemens
Product TypeCircuit Breaker
Product LineSIRIUS
Part Number3RV1021-0EA15
UPC754554961262
Weight0.38 lbs (0.17 kg)
Protection ClassIP20
Rated Current0.4 Amperes
Power Loss1.8 to 5.5 Watts
Number of Poles for the Main Circuit3 poles
Electrical Connection TypeScrew-type terminals
Rated Operating Voltage690 Volts
Surge Voltage Resistance6,000 Volts
Mounting MethodDIN rail mount
Power Capacity0.09 kilowatts at 400 Volts
Auxiliary Switch DesignTransverse
Trip ClassClass 10
Ambient Operating Temperature-20 to 60°C (in a non-condensing environment)
Storage Temperature-50 to 80°C (in a non-condensing environment)
Mechanical Life Cycles100,000 operations
Request a Repair

The 3RV1021-0EA15 model from Siemens in the SIRIUS series is a reliable circuit breaker. It features three poles for the main circuit, offering enhanced electrical management. With a rated current of 0.4 amperes, this device allows efficient handling of various electrical loads. Its robust construction supports a rated operating voltage of up to 690 volts and demonstrates exceptional surge voltage resistance up to 6,000 volts.

In use, the circuit breaker experiences a power loss ranging from 1.8 to 5.5 watts. Designed for DIN rail installation, the device is ideal for various setups. For auxiliary functionality, it incorporates a transverse switch design, contributing to its versatility. It operates effectively within an ambient temperature range of -20 to 60°C, ensuring performance stability in different environments.

For storage needs, this circuit breaker can withstand temperatures between -50 and 80°C without condensation, providing flexibility for various applications. The device’s superior durability is highlighted by its mechanical life rating, allowing for 100,000 operations, making it a robust choice in industrial settings. Overall, the Siemens 3RV1021-0EA15 circuit breaker integrates functionality with reliability, tailored for demanding electrical environments.
