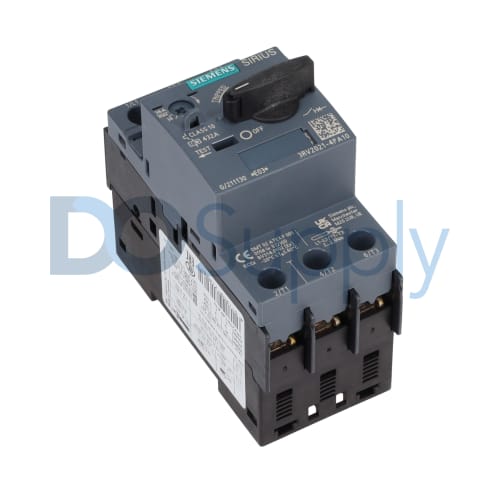

Siemens SIRIUS 3RV2021-4PA10

Product image is representative; revision or series may vary. Contact us to request a specific version.

3RV2021-4PA10

|
Need a Specific Revision?

The Siemens 3RV2021-4PA10 is a circuit breaker dedicated to motor protection within the SIRIUS series. It operates efficiently at voltages ranging from 20 to 690 volts and has a specified insulation voltage of up to 690 volts, providing reliable service even under intense conditions.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 3RV2021-4PA10

ManufacturerSiemens
Product LineSIRIUS
Part Number3RV2021-4PA10
UPC662643924602
Weight1.00 lbs (0.45 kg)
PartCircuit breaker
FunctionMotor protection
SizeS0
Power Loss16.25 W in operating state
Insulation Voltage690 V
Surge Voltage Resistance Rated Value6 kV
Shock Resistance25 G
Operating Voltage20 to 690 V
Rated Frequency50 to 60 Hz
Auxiliary Contacts0
Ground Fault DetectionNo
Phase Failure DetectionYes
Mounting PositionAny
Fastening MethodScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Required SpaceYes, 9 mm on each side
Request a Repair

The Siemens 3RV2021-4PA10 circuit breaker, part of the SIRIUS product line, serves specifically for motor protection applications. This component is compact and classified as size S0, making it functional in various setups. It supports an operating voltage range from 20 V to 690 V, making it versatile for different power conditions. In its operating state, it experiences a power loss of 16.25 W, ensuring that protection does not overly compromise efficiency.

The circuit breaker is rated for an insulation voltage of 690 V and possesses a surge voltage resistance rated at 6 kV, which ensures sound performance during voltage spikes. With a shock resistance capability of 25 G, it is built to withstand significant impacts during operation.

This device operates on a frequency range of 50 to 60 Hz and is equipped with no auxiliary contacts. While it offers phase failure detection for operational monitoring, it does not include ground fault detection. The flexible mounting options allow installation in any orientation. Fastening uses both screw and snap-on attachments, complying with the requirements for 35 mm DIN rails according to DIN EN 60715, and it requires a space clearance of 9 mm on both sides for proper installation.
