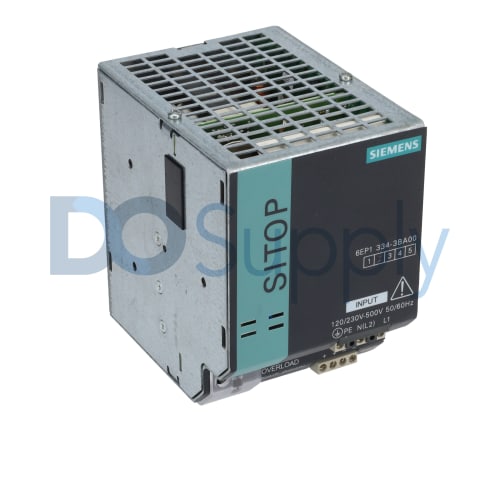

Siemens SITOP 6EP1334-3BA00

Product image is representative; revision or series may vary. Contact us to request a specific version.

6EP1334-3BA00

|
Need a Specific Revision?

The Siemens 6EP1334-3BA00 is a stabilized power supply input unit. It operates with an input voltage range between 120 and 500 volts AC and provides a consistent output voltage of 24 V DC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 6EP1334-3BA00

ManufacturerSiemens
Product LineSITOP
Part Number6EP1334-3BA00
UPC662643928839
Weight3.25 lbs (1.47 kg)
SeriesPower Supplies
ProductStabilized Power Supply Input
Input Voltage120/230-500 V AC
Output Voltage24 V DC
Output Current10 A
Operating Frequency50/60 Hz
Rated Line Frequency47/63 Hz
Input Current4.4 A
Switch On Current35 A
Efficiency87%
Power Loss36 W
Dynamic Load Smoothing3%
Load Step Setting Time2 ms
Setting Time5 ms
Current Limitation12 A
Protection ClassIP20
Request a Repair

The model 6EP1334-3BA00 from Siemens is designed as a stabilized power supply input and supports input voltages ranging from 120 to 500 V AC. This versatility allows it to adapt to various electrical environments. The unit outputs a stable 24 V DC, providing reliable power for connected devices.

With a continuous output current of 10 A, this power supply meets significant demands for electrical current. It draws an input current of 4.4 A and requires a switch-on current of 35 A to initiate operation. The operational efficiency is reported at 87%, maintaining energy effectiveness while minimizing power loss, calculated at 36 W.

The power supply operates within both 50 and 60 Hz, accommodating various applications. Rated line frequency is specified at 47/63 Hz and features current limitation set at 12 A to protect against overcurrent conditions. The parameters for dynamic load smoothing are at 3%, ensuring stable performance during load variations.

Timing specifications include a load step setting time of 2 ms and a general setting time of 5 ms, allowing for rapid response to load changes. With an IP20 protection class, the device is protected against solid objects larger than 12.5 mm but is not suitable for wet or highly corrosive environments.
