B27000S01

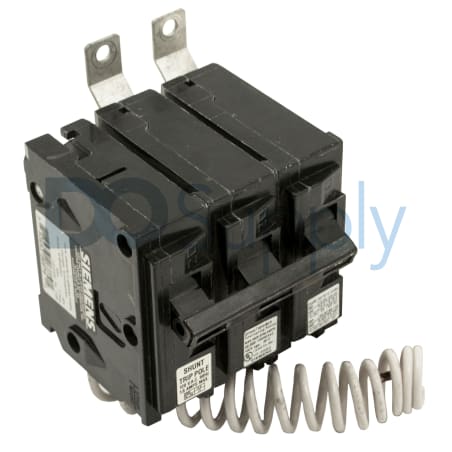

Siemens offers the B27000S01, a molded case circuit breaker renowned for its efficiency and robust design. It operates at a voltage range of 120/240 Volts AC and has a current rating of 70 Amperes, suitable for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for B27000S01
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SpeedFax |
| Part Number | B27000S01 |
| UPC | 783643268432 |
| Amperage Rating | 70 Amperes |
| Voltage Rating | 120/240 Volts AC |
| Poles | 2 Poles |
| Phase | 1 Phase |
| Trip Type | Thermal Magnetic with Shunt Trip (LI) |
| AIC Rating | 10 kA @ 120/240 Volts |
| Mounting Type | Bolt-On |
| Frame Type | BL |
| Terminal Type | Load Side Lug |
| Accessory | Shunt Trip, 120 Volts AC |
| Certifications | UL Listed, CSA |
| HACR Rated | Yes |
The Siemens B27000S01 is a molded case circuit breaker optimized for performance and safety in electrical systems. With an amperage rating of 70A, this device effectively operates across a voltage spectrum of 120/240 Volts AC. It is equipped with two poles and functions on a single-phase basis.
The thermal magnetic trip type is enhanced with a shunt trip feature, allowing for quick disconnection in fault situations. It has an AIC rating of 10 kA at 120/240 volts, ensuring reliable fault protection. Installed via a bolt-on method, this breaker ensures secure connections within the electrical panel.
It utilizes a load side lug terminal type which facilitates efficient wiring applications. Additionally, the B27000S01 is HACR rated and has received UL and CSA certifications, signifying its compliance with stringent safety standards. A shunt trip accessory rated for 120 Volts AC is included, adding to the unit's functionality. This breaker is a suitable choice for various electrical installation needs.
