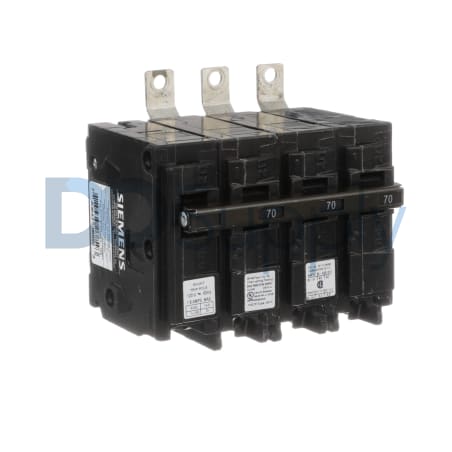

Siemens SpeedFax B370H00S01

Product image is representative; revision or series may vary. Contact us to request a specific version.

B370H00S01

|
Need a Specific Revision?

The Siemens B370H00S01 is a molded case circuit breaker featuring three poles. Able to manage currents up to 70 A, it operates at 120/240 VAC, incorporating thermal magnetic trip protection.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for B370H00S01

ManufacturerSiemens
Product TypeMolded Case Circuit Breaker
Product LineSpeedFax
Part NumberB370H00S01
UPC783643269002
Rated Current70 A
Poles3 Poles
Rated Voltage120/240 VAC
Interrupting Rating22 kA at 240 VAC
MountingPanel Mount
Trip TypeThermal Magnetic
Phase3-phase
Electrical CategoryCircuit Protection
Connection – LineBusbar
Frequency50/60 Hz
Trip FunctionsLong Time & Instantaneous
Request a Repair

Siemens' B370H00S01 is a three-pole molded case circuit breaker designed for comprehensive circuit protection. With a rated current capacity of 70 Amps, this device operates effectively at a voltage rating of 120/240 VAC. This breaker employs thermal magnetic tripping mechanisms, which provide reliable operational safety across diverse applications.

The unit boasts an interrupting rating of 22 kA at 240 VAC, making it capable of handling substantial fault currents, thereby ensuring electrical system safety. It is suitable for installation in panel mount configurations, allowing for straightforward integration into existing electrical setups.

This circuit protection device is built to perform in 3-phase systems and operates with a frequency range of 50 to 60 Hz. The B370H00S01 connects to the line via a busbar connection, enhancing its adaptability in various industrial applications. This circuit breaker offers long time and instantaneous trip functions, enabling it to respond effectively to overloads and short circuits.
