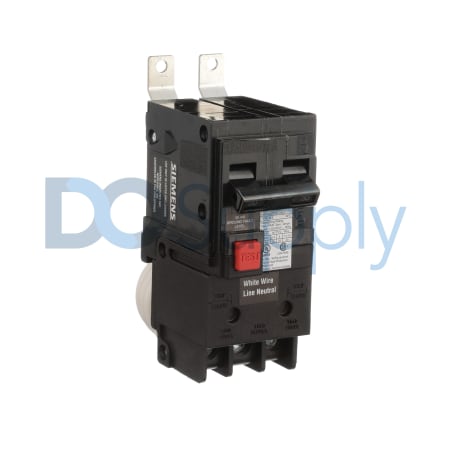

Product image is representative; revision or series may vary. Contact us to request a specific version.
BE230H
The Siemens BE230H, from the SpeedFax series, is a low voltage molded case circuit breaker designed specifically for panelboard mounting. It supports a voltage rating of 120/240 VAC and has an amperage rating of 30 A, suitable for single-phase applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BE230H
| Manufacturer | Siemens |
|---|---|
| Product Type | Low Voltage Molded Case Circuit Breakers Panelboard Mounting |
| Product Line | SpeedFax |
| Part Number | BE230H |
| UPC | 783643274181 |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 30 A |
| Poles | 2 Poles |
| Trip Type | Thermal-Magnetic |
| Interrupt Rating | 22 AIC |
| Phase | Single-phase |
| Ground-Fault Sensitivity | 5 mA |
| Mounting Type | Panelboard / Plug-in Mounting |
| Wire Range | #14 – #8 AWG |
| Terminal Type | Pressure Lug Terminals |
| Conductor Material | Copper (Cu) or Aluminum (Al) |
| Nominal Frequency | 50/60 Hz |
| Certification | UL 489 |
The BE230H circuit breaker from Siemens' SpeedFax series is engineered for low voltage applications. Rated for 120/240 VAC, this breaker offers a maximum current capacity of 30 Amps, ensuring it meets the demands of various setups. Designed for single-phase operations, it is structured with two poles.
Protection against overload and short-circuit conditions comes from its thermal-magnetic trip type. The BE230H has a ground-fault sensitivity of 5 mA, which is essential for enhancing safety by detecting ground faults. With an interrupt capacity of 22 AIC, it effectively safeguards against potential fault currents.
The mounting method is panelboard or plug-in, allowing for straightforward installation in electrical panels. It supports a wire range of #14 to #8 AWG, accommodating copper or aluminum conductors through pressure lug terminals. Designed for nominal frequencies of 50/60 Hz, this circuit breaker is UL 489 certified, confirming its compliance with industry standards.
