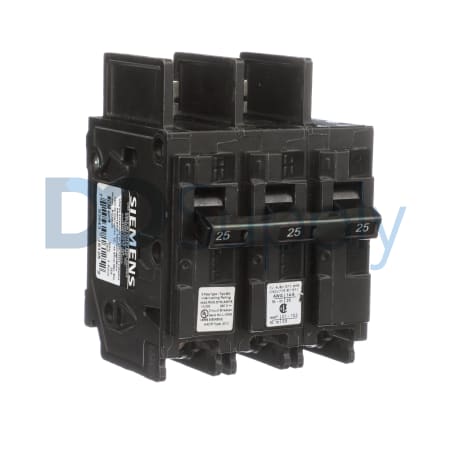

BQ3B025
The Siemens BQ3B025 is a molded case circuit breaker designed to handle electrical circuits efficiently. With an ampere rating of 25 A, it provides reliable protection in a variety of applications, functioning at a rated operational voltage of 240V AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BQ3B025
| Manufacturer | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | SpeedFax |
| Part Number | BQ3B025 |
| UPC | 783643161252 |
| Conductor Material (Copper) | 14 AWG to 6 AWG |
| Conductor Material (Aluminum) | 12 AWG Minimum |
| Handle Operation | Toggle Handle |
| Pole Configuration | 3 Poles |
| Ampere Rating | 25 A |
| Rated Operational Voltage | 240V AC |
| Short Circuit Rating | 10 kA at 240V AC |
| Connection Method | Bolt-On |
| Trip Mechanism | Thermal-Magnetic |
| Included Components | Load Lugs |
The molded case circuit breaker BQ3B025 from Siemens is engineered for dependable electrical protection. With an operational voltage rating of 240V AC, this device is essential for safeguarding circuits within various electrical systems. It has a capacity to handle a maximum current of 25 amperes, suitable for a variety of applications. Designed with three poles, the BQ3B025 allows for effective three-phase circuit management. Its thermal-magnetic trip mechanism ensures it responds swiftly to overload and short circuit situations, enhancing safety across electrical installations.
Installation is made simple with a bolt-on connection method, which ensures secure attachment within panelboards. The circuit breaker is equipped with load lugs, facilitating straightforward wiring for both copper and aluminum conductors. This device accommodates conductor sizes ranging from 14 to 6 AWG for copper materials, while aluminum conductors require a minimum size of 12 AWG. Additionally, it boasts a short circuit rating of 10 kA at 240 volts, reinforcing its capability to protect sensitive equipment from damage caused by electrical faults.
