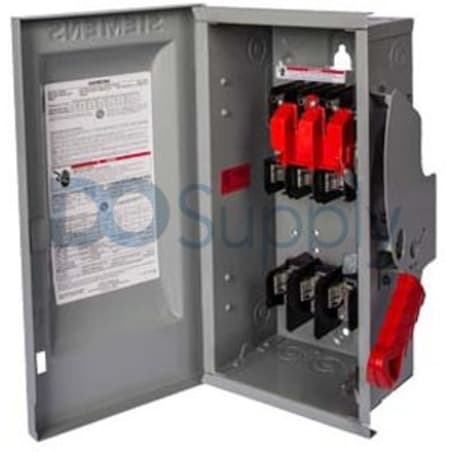

HF261S
The HF261S is a heavy-duty safety switch from Siemens, categorized under the VBII Safety Switches series. It is designed to operate within a voltage range of up to 600 VAC/VDC. This switch features two poles and is rated for 30 A, ensuring reliable performance in demanding settings.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for HF261S
| Manufacturer | Siemens |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | VBII Safety Switches |
| Part Number | HF261S |
| UPC | 783643173958 |
| Switch Type | Fusible Safety Switch |
| Number of Poles | 2 Poles |
| Duty Rating | Heavy Duty |
| Phase | Single Phase |
| Voltage Rating | 600 VAC/VDC |
| Number of Wires | 2 Wire |
| Amperage Rating | 30 A |
| Interrupt Rating | 200 kAIC at 600 V |
| Actuator Type | Single Throw |
| Enclosure Rating | NEMA 4/4X |
| Compliance | UL Listed |
| Enclosure Material | Stainless Steel |
The Siemens HF261S safety switch exemplifies a robust and reliable solution for safeguarding electrical circuits. As a heavy-duty safety switch, it is engineered to manage voltages up to 600 VAC and VDC with ease, providing essential protection in demanding industrial applications. This particular switch operates on a single-phase system and features a fusible type for optimal safety.
The HF261S is configured with two poles and has a current rating of 30 Amperes. It is designed to interrupt fault currents effectively, boasting an impressive interrupt rating of 200 kAIC at 600 V. This ensures that the device can handle significant electrical loads and fault conditions without compromising safety.
Constructed from stainless steel, the enclosure of this switch meets the NEMA 4/4X rating, providing excellent protection against dust, water, and corrosion, suitable for both indoor and outdoor applications. As an added assurance of quality, this safety switch is UL listed, which signifies compliance with recognized safety standards. The actuator is of the single throw type, ensuring straightforward operation in routine maintenance and emergency situations. Overall, the HF261S delivers both performance and reliability, making it an essential component in safety-critical electrical installations.
